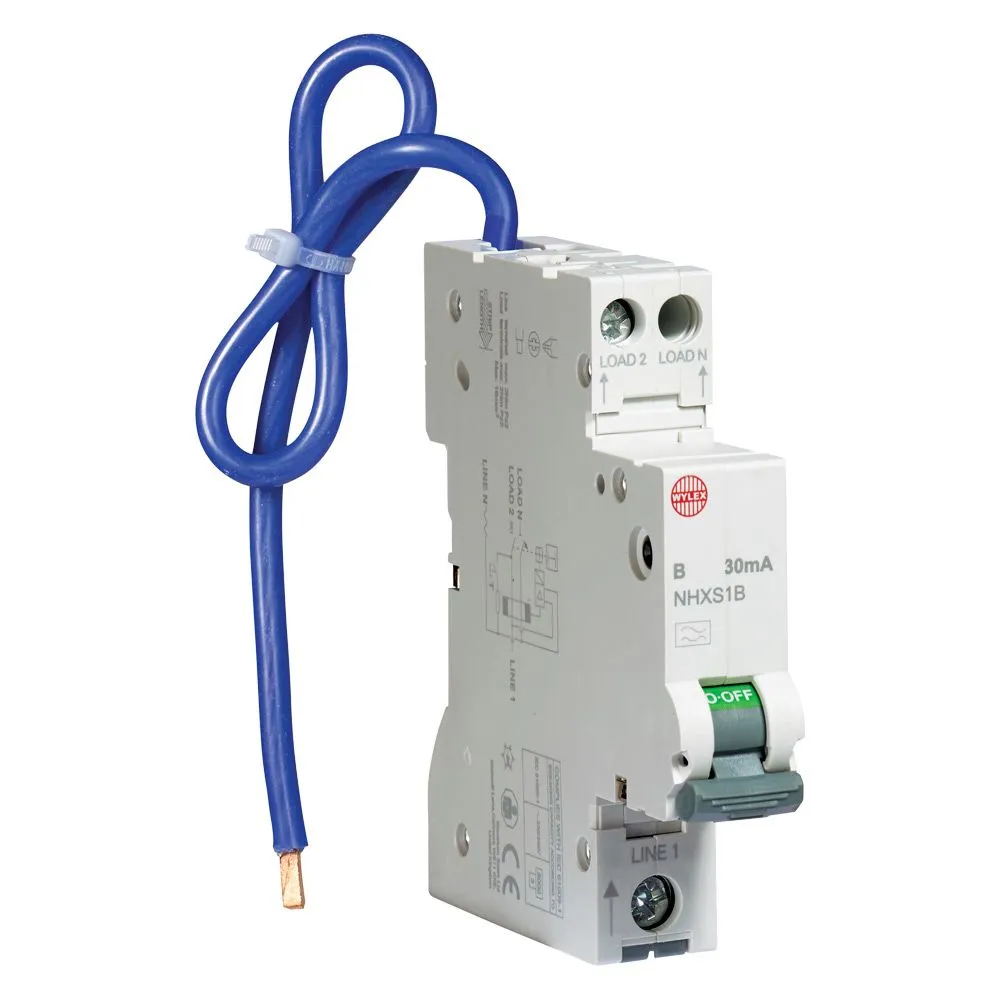

NHXSB32 is a Wylex RCBO 32A compatible with the Wylex NM consumer unit range.

Wylex NHXS miniature circuit breakers detect ground earth leakage via overloads and fault currents and interrupts the supply to prevent damage to the installation. Wylex miniature RCBO’s provide more wiring space for the installer making the installation easier and quicker. During installation resistance testing live and neutral conductors do not have to be disconnected, this saves landlords time and money testing installations during occupancy voids.

Now available with the same sized matching NHXS miniature RCBOs that have an increased level of safety by including a switched neutral as standard, reducing installation and testing times therefore bringing costs down. A faulty or damaged circuit is fully isolated by disconnecting the live and neutral conductors. Healthy circuits remain in service, only the faulty circuit is switched off. This avoids danger and prevents inconvenience in the event of a fault (now required by regulation 314.1).

Features of Wylex NHXS1B32 32A Minature RCBO Include:

• Miniature RCBO
• Fits NM & NMX Consumer Units
• Release Characteristic: B
• RCD Type: A
• Current Rating: 32A
• Mounting: DIN Rail
• Incoming Terminal Capacity: 0.75mm² to 16mm²
• Outgoing Terminal Capacity: 0.75mm² to 16mm²
• Number of Modules: 1
• Number of Poles: Single and Switched Neutral
• Breaking Capacity: 6kA
• Trip Curve Type: B
• Trip Sensitivity: 30mA
• Voltage: 230V
• Frequency: 50Hz
• Terminal capacity: 25mm²
• Tightening torque: 2.3Nm minimum 3.0Nm maximum
• Ambient Operating Temperature: -5°C to 40°C
• IP Rating: IP20
• Height: 90mm
• Width: 18mm
• Depth: 77mm
• Standards: EN 61009-1 and IEC 61009-1
• CE Conformity
• WEEE Symbol
• UKCA Conformity
