INTRODUCTION:

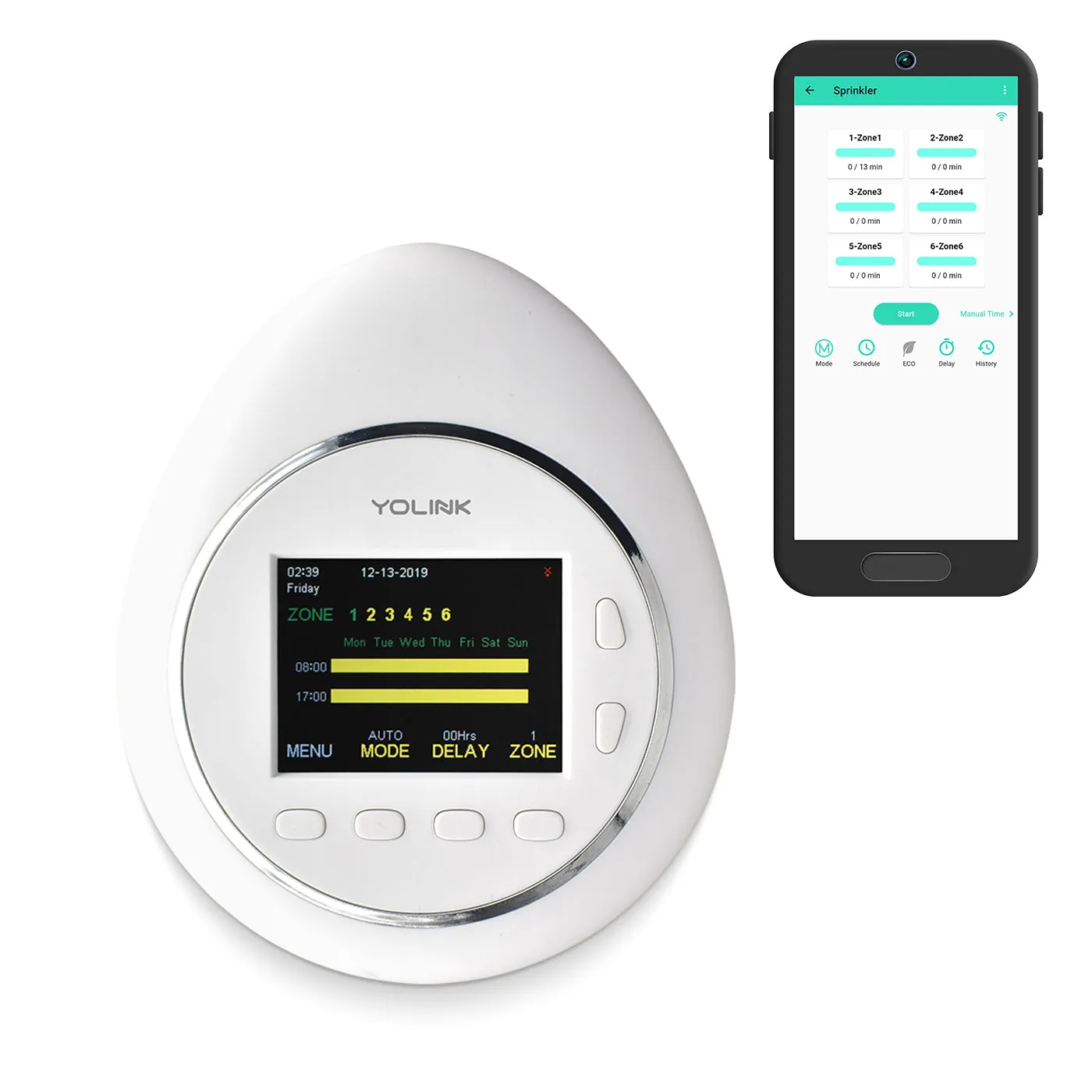

• Smart lawn sprinkler controller, with six zones and master valve control

FEATURES:

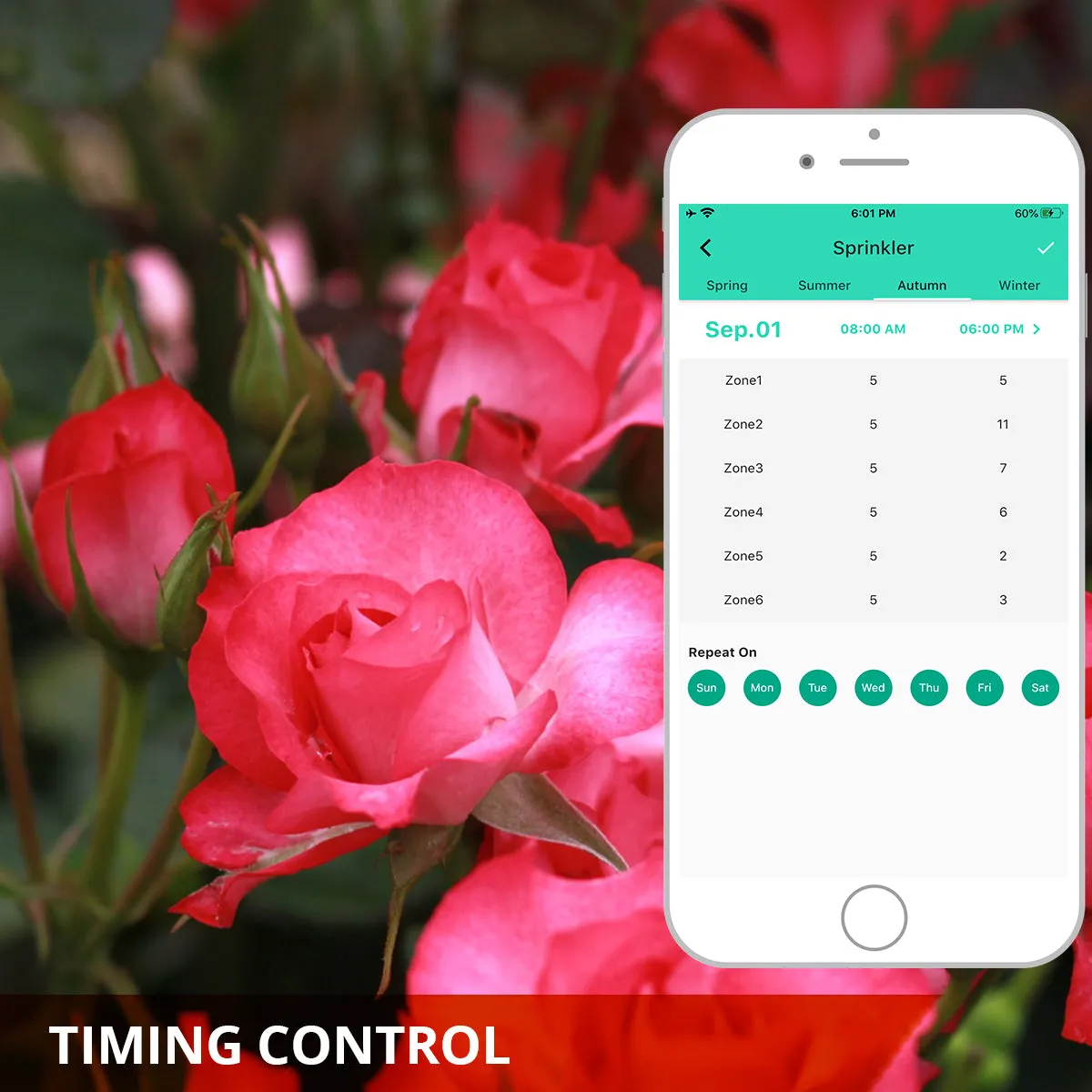

• Two daily watering times
• Four unique season schedules
• 24 VAC-powered (transformer not included)

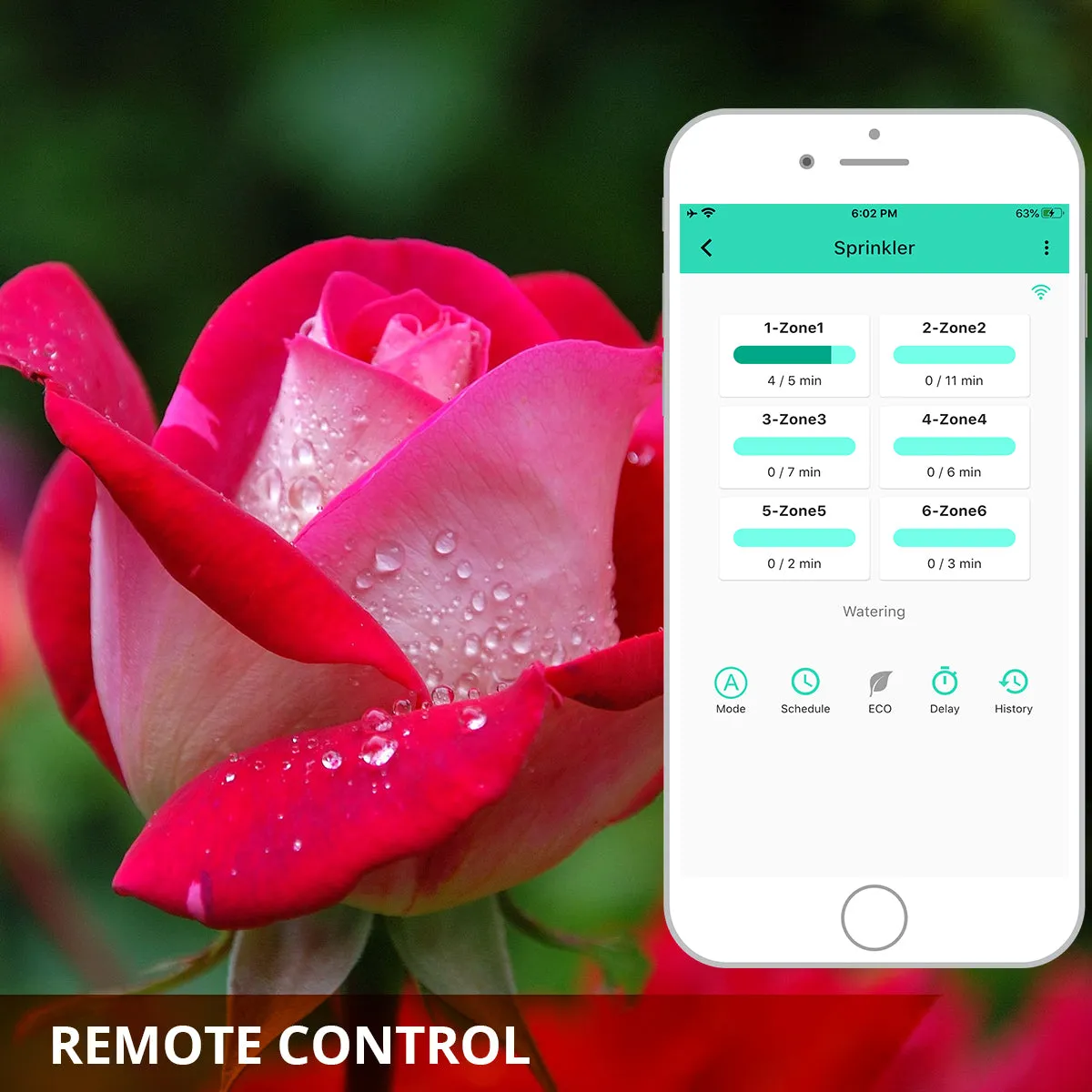

• Check on the status, and control your lawn sprinkler controller remotely, from anywhere at any time
• Alexa/Google Assistant and IFTTT integration
• YoLink’s industry-leading long range communication allows for operation in larger homes and in areas difficult for other wireless systems, such as basements, separate garages/structures, and even outside your home

BENEFITS:

• Forget about forgetting to water the lawn – set the sprinkler controller to water your lawn at times you’ve specified in advance
• Conserves water and pays for itself quickly, by watering your lawn no more than is needed, and as required to keep your lawn healthy and green, preventing costly and time-consuming reseeding or sod replacement
• Traditional sprinklers may be forgotten and left on too long, but the Smart Sprinkler Controller ensures your lawn is not over-watered, controlling your water bill and maintaining the health of your lawn

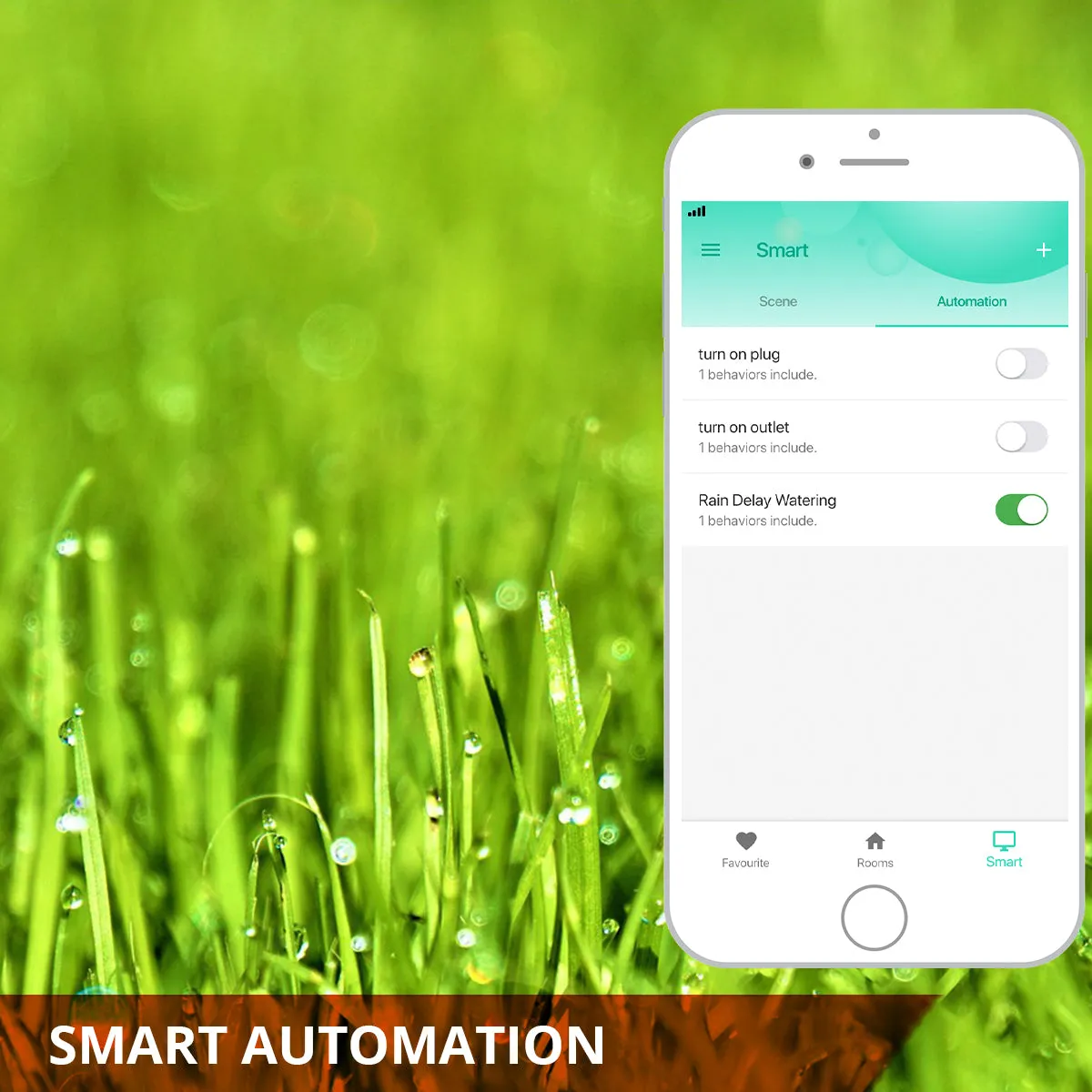

• ECO Mode prevents your lawn from being watered if it has rained or if rain is in the forecast (national weather data automatically checked once an hour)

SUGGESTED PRODUCTS:

•  is required. Starting your first YoLink system? Consider one of our

REQUIREMENTS:

• YoLink Hub with an internet connection (wired Ethernet or 2.4GHz Wi-Fi). Refer to the Hub user guide for additional information
• Smartphone or tablet running iOS 9 or higher, Android 4.4 or higher
• A functional existing 24 VAC transformer/power supply is assumed, otherwise please purchase separately
• Tools Required, Including But Not Limited to: Drill, Phillips/cross screwdriver, small slotted screwdriver, optional mounting anchors
• Installation Difficulty Level: Medium-Difficulty

TECHNICAL SPECS:

• Semtech® LoRa® RF Module YL09 microcontroller with 32-Bit RISC processor

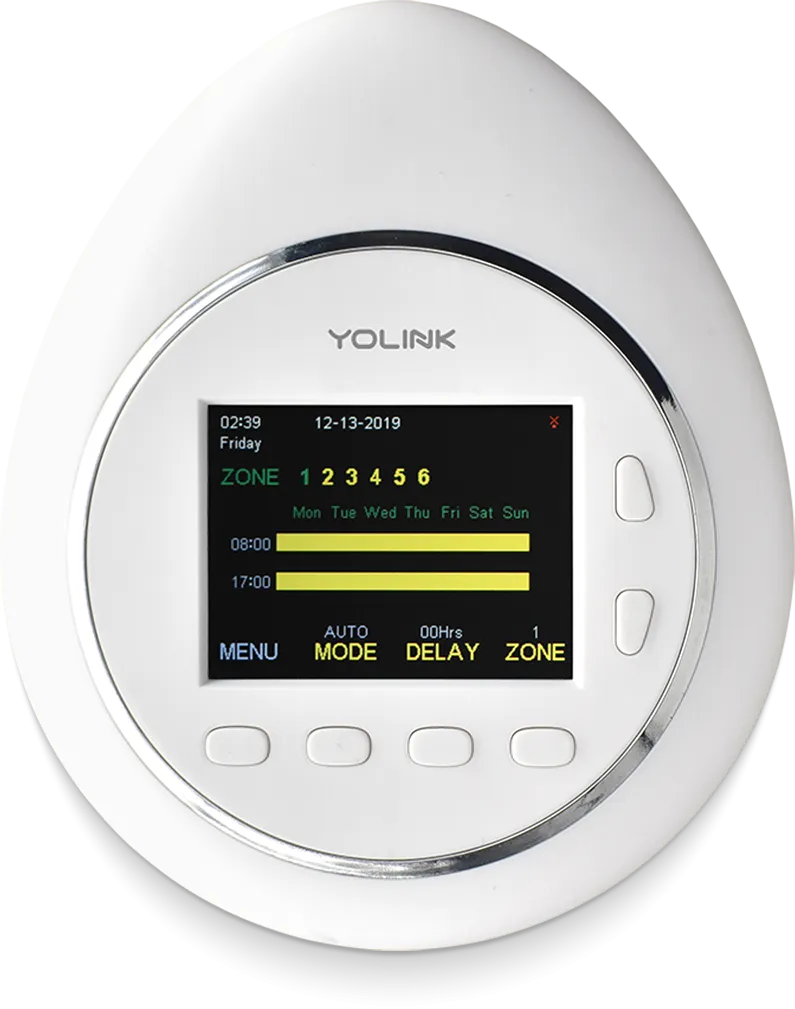

• Multi-color LCD Display
• Control Buttons (6)
• Power: 24 VAC (Existing or customer-supplied transformer)
• Color: White
• Dimensions (L x W x D): 6.06 x 5.12 x 1.10 inches (154 x 130 x 28 mm)
• Environmental:
• Operating Temperature Range: 14°F – 122°F (-10°C – 50°C)
• Operating Humidity Range: 0 – 90% non-condensing
• Intended for indoor use only

PACKAGE CONTENTS:

• (1) YoLink Sprinkler Controller
• (1) Mounting Base
• (4) Wall Screws
• (4) Anchors
• (1) Quick Start Guide

PLEASE NOTE:

• The Sprinkler Controller is packaged with a quick start guide only. Please download the current


ADDITIONAL RESOURCES:

• YoLink Website:
• YoLink Facebook page:
• YoLink YouTube channel (under construction):
• Questions? Need system design assistance? Contact a System Architect via email:
