Description

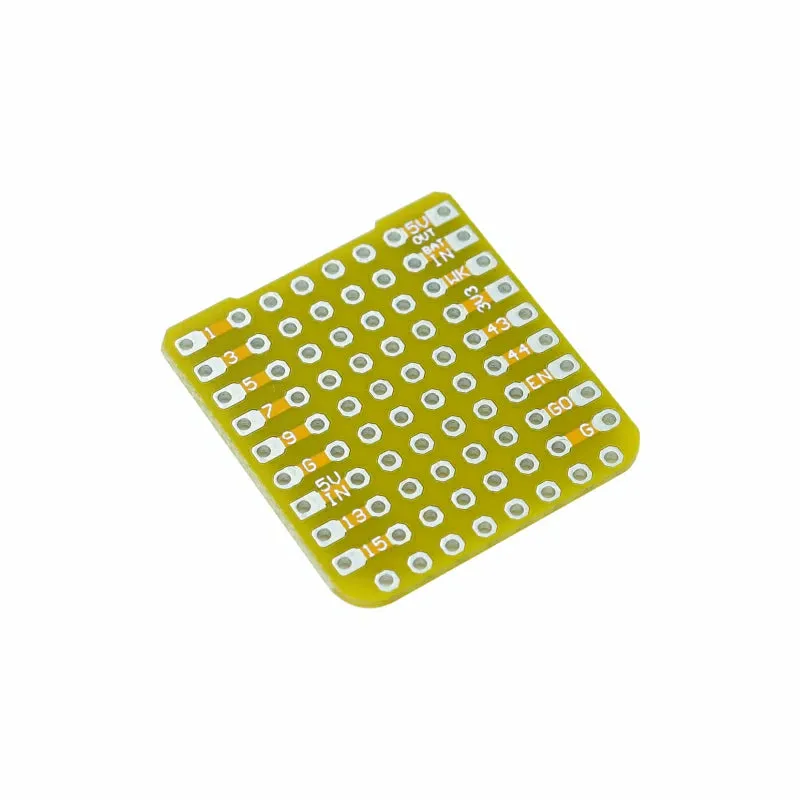

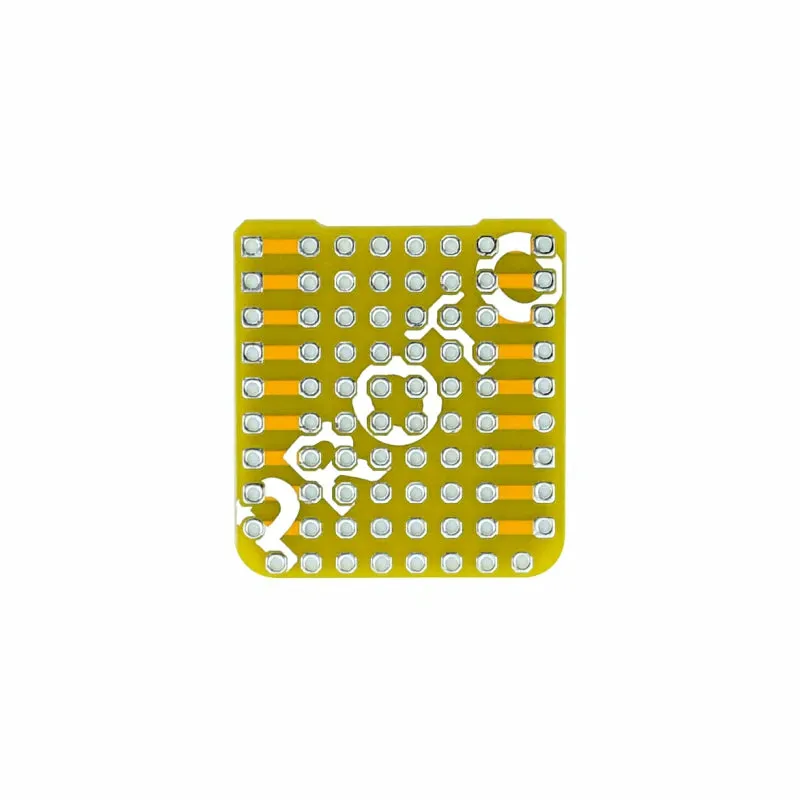

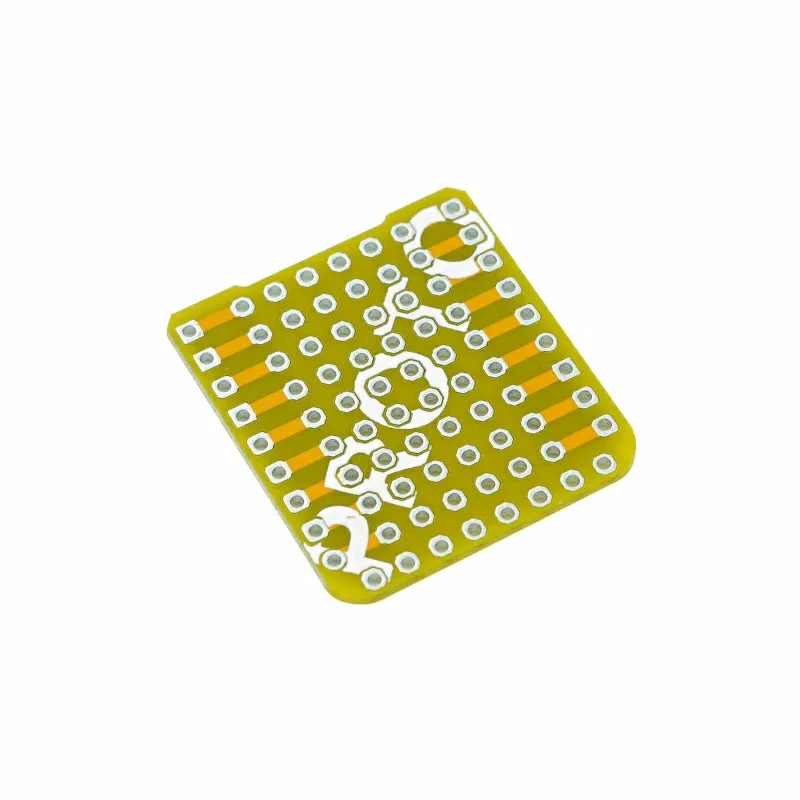

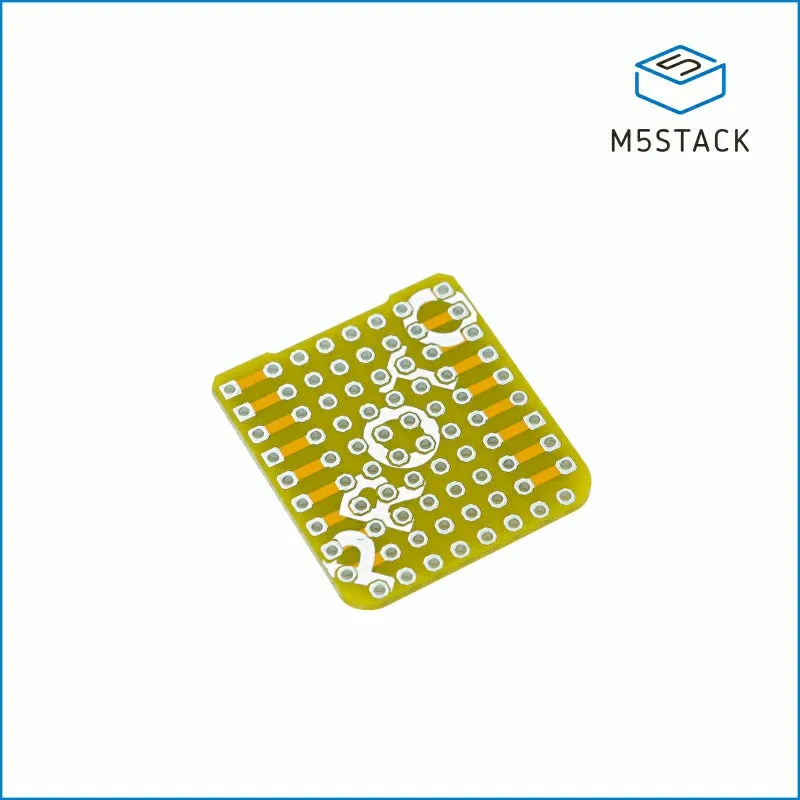

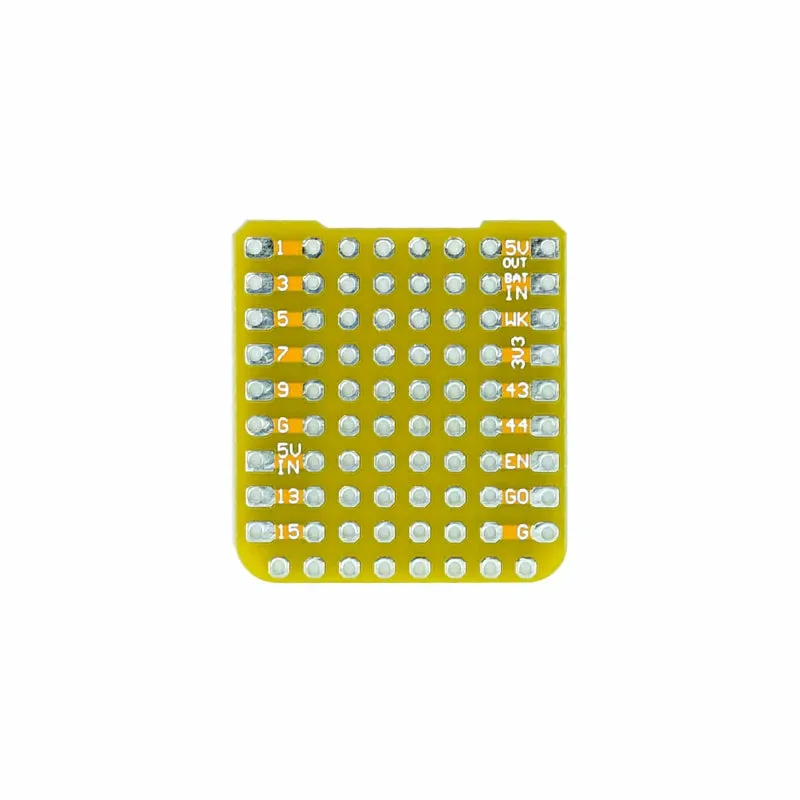

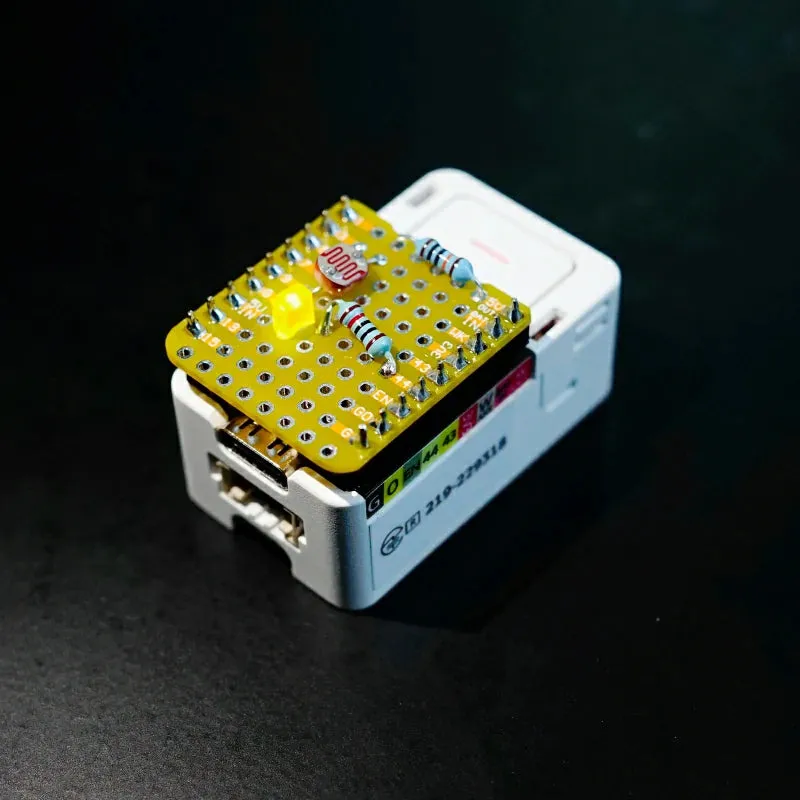

Capsule-proto is a prototyping perforated board specifically designed for M5Capsule. With a hole spacing of 2.54mm, it aims to simplify and accelerate the prototype development process, providing M5Capsule users with a convenient configuration platform to quickly validate concepts, test ideas, and efficiently bring creative projects to life.

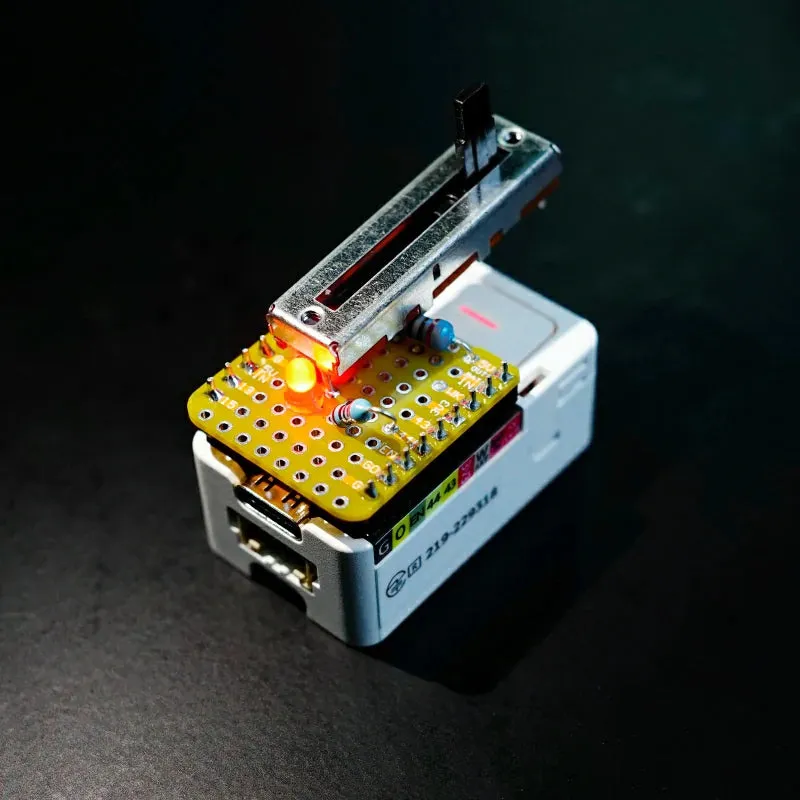

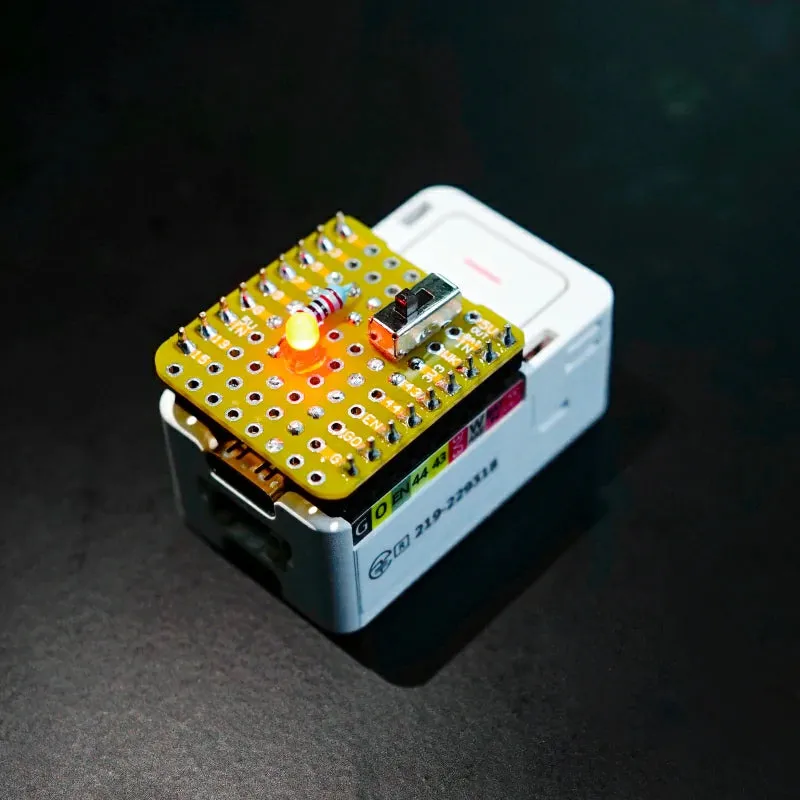

Capsule-proto allows users to easily connect components and peripherals to the M5Capsule, enabling the creation of custom circuits and expanding the capabilities of the device. The perforated board provides ample space for soldering, wiring, and attaching various electronic modules, sensors, and actuators.

With Capsule-proto, users can quickly iterate and experiment with different configurations, making it an ideal tool for rapid prototyping and proof-of-concept development. It simplifies the process of building functional prototypes based on the M5Capsule, empowering users to bring their creative ideas to life in a more efficient and effective manner.

Features

• M5Capsule compatibility: CapsuleProto is fully compatible with M5Capsule
• Multifunctional test area: allows users to experiment and test without interfering with the main prototype area, improving the flexibility of prototype development.
• Wide application: Suitable for Internet of Things projects, smart device prototyping, education and learning and other fields
• User-friendly design: The design is simple and easy to operate, suitable for all kinds of users, whether professional developers or beginners.
• Efficient Prototyping: CapsuleProto provides users with an efficient prototyping platform

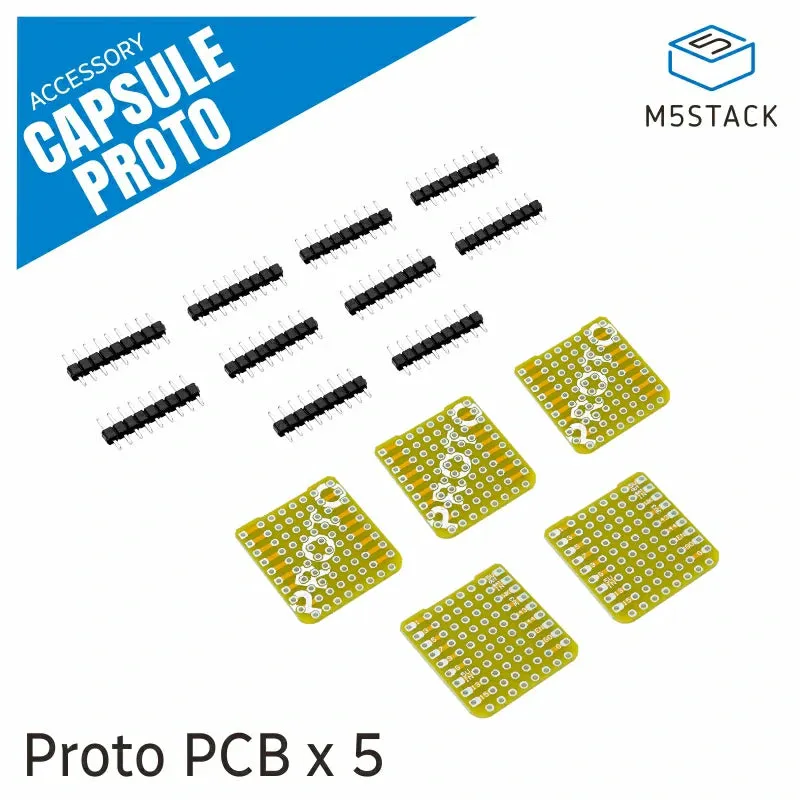

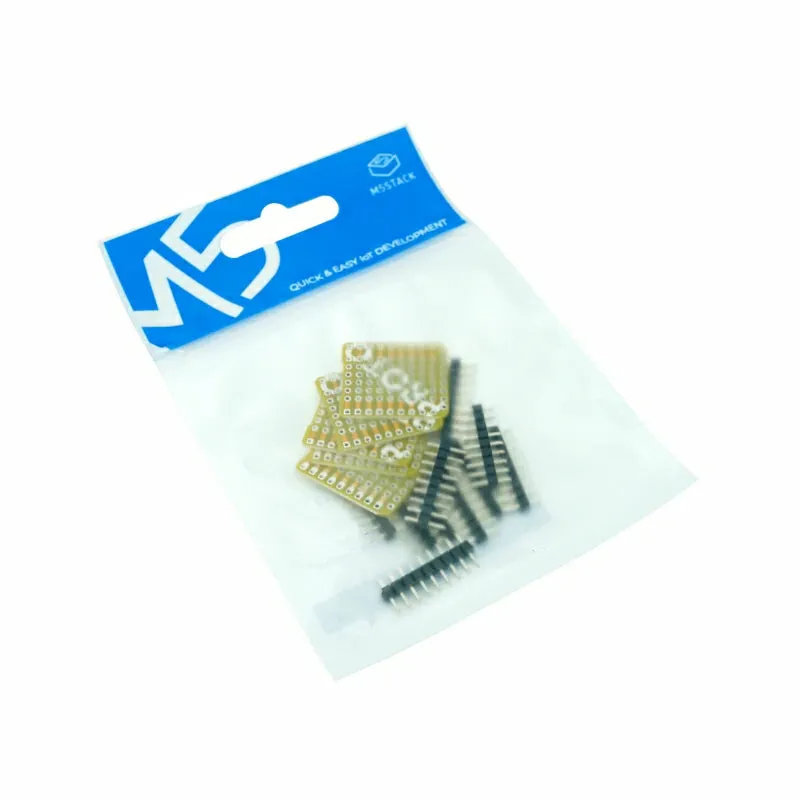

Includes

• 5x Proto PCB
• 10x 1*9pin (2.54mm hole pitch)

Applications

• Internet of Things project
• Smart device prototype building
• Education and learning

Specification
