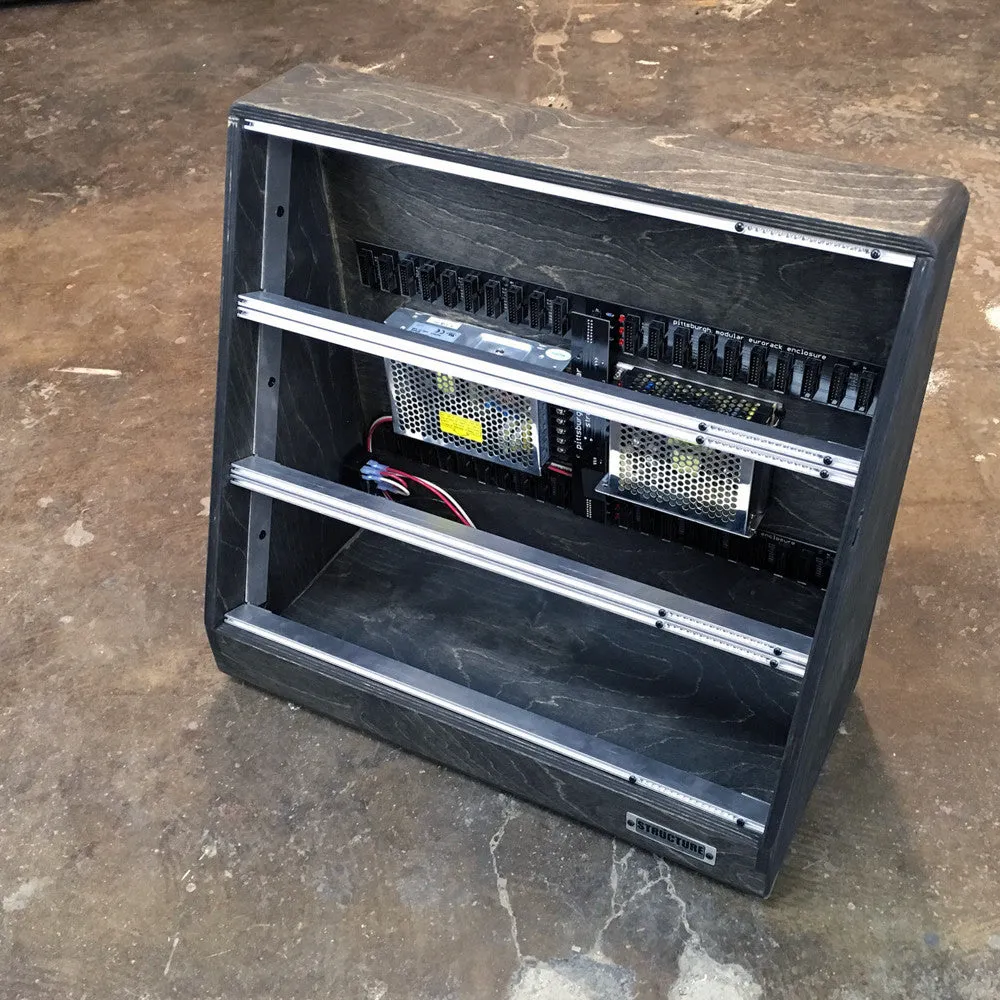

The Structure EP-270 is a beautiful triple row, 270HP desktop eurorack case. The perfect enclosure for any modular synthesizer setup.
Made from hand stained hardwood and aluminium, with three 90HP rows, for 270HP of total space available.
Edge to edge rails reduce the gaps between modules and 18 smooth sliding square nuts per rail ensures modules always fit perfectly. (Holds up to 54 modules).

EP-270 Power

• 4 Amps of Clean, Filtered 12v Power
• 3 Amps of Clean, Filtered -12v Power
• 2 Amps of Clean, Filtered 5v Power
• Case Wide 2 Channel Eurorack System Bus
• 40 Keyed 16 Pin Eurorack Power Headers
• External Power Switch with LED
• Fused Power Protection
• Universal IEC Power Connector
• 2 EMI Filters Protect All 3 Power Rails ( 12v, 5v, -12v)
• Low Output Ripple & Noise
• UL & CE Approved, RoHS Compliant
• Over Load and Short Circuit Protection
• Line Regulation (Full Load): ≤0.5%
• Output Over Load Protection: 10%-150% Hiccup Mode with Auto-Recovery

Dimensions

• External Depth at Top: 8.89 cm
• External Depth at Base: 22.86 cm
• External Height: 45.72 cm
• External Width: 48.26 cm
• Minimum Internal Depth for Modules: 1.05 cm
• Maximum Internal Depth for Modules: 15.24 cm

Includes 120 Black (Size 4-40 1/4") module mounting screws.

Product Specs

• Item Number: 18885
• Make:
• Model:
• Condition:
• Finish: Black Stain
• Categories: ⇒
• Made In: United States
• MPN: PMS3013
