Product Details
＋
OVERVIEW

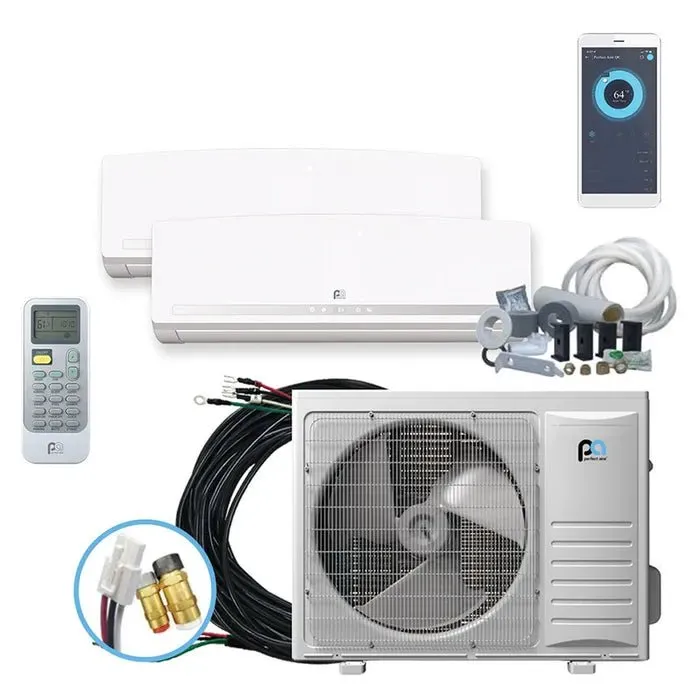

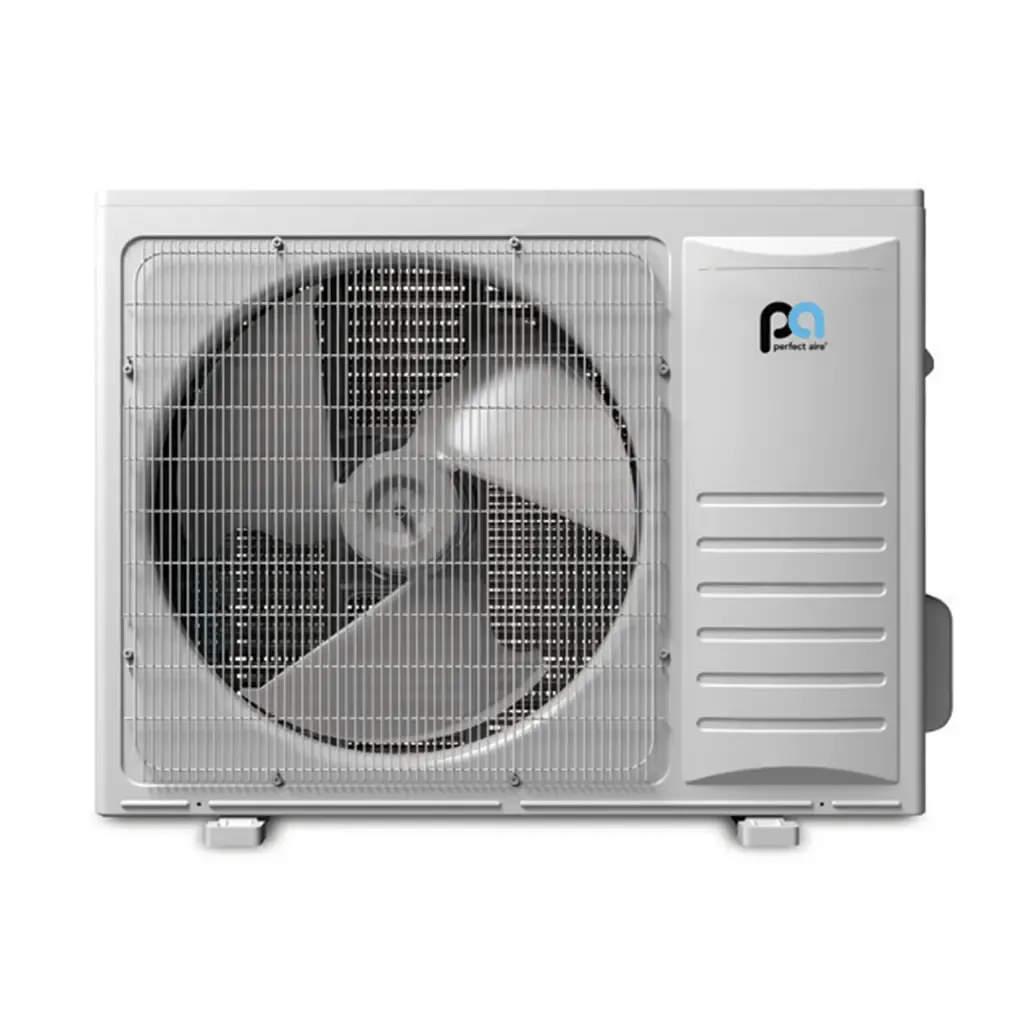

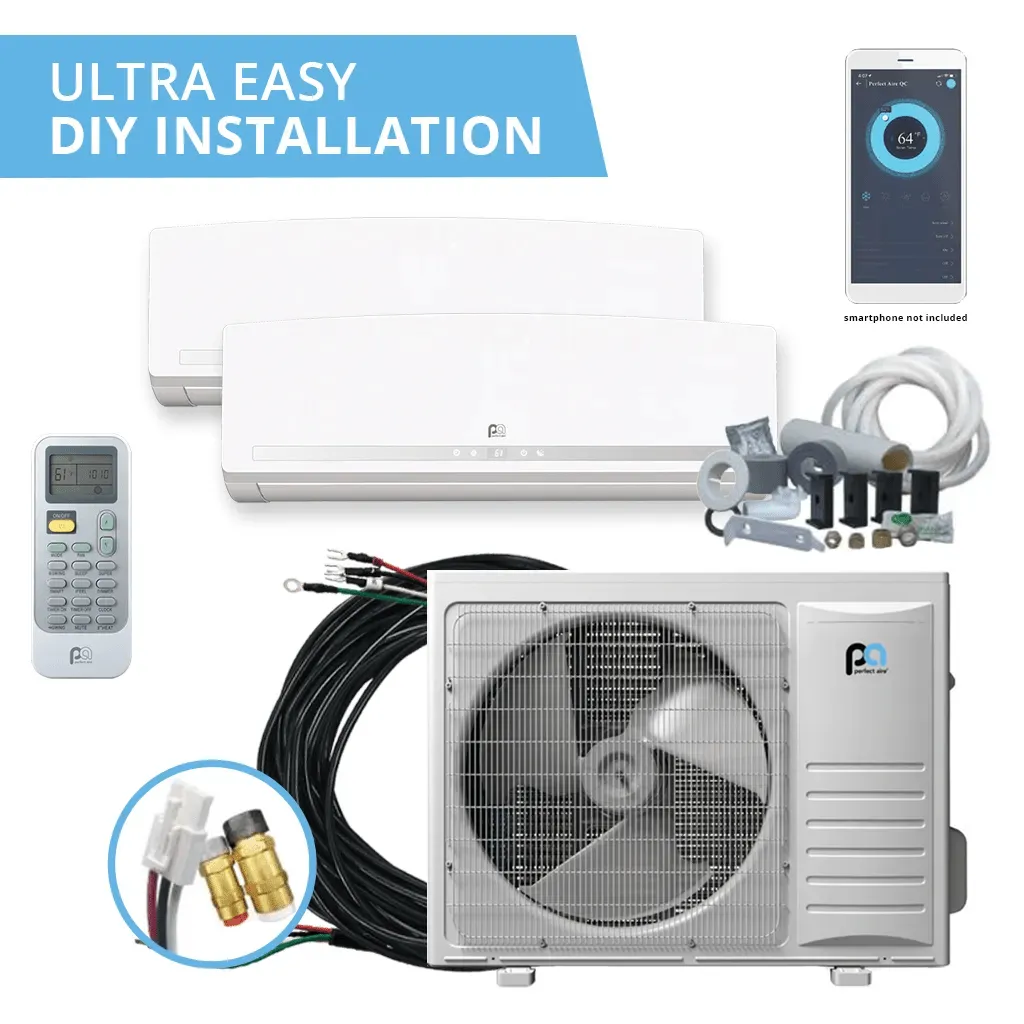

Perfect Aire offers the 3PAMSHHQC18-MZO2 outdoor condenser which provides the ability to easily install a Perfect Aire Multi-Zone DIY Mini-Split System.
FEATURES
- 18,000 BTU multi zone DIY heat pump condenser
- 22 SEER
- 100% sealed and pre-charged system when installed with the right accessories
- Provides efficient heating down to -13°F
- Golden Fin corrosion coated coils withstand corrosive outdoor elements
- Energy Star certified

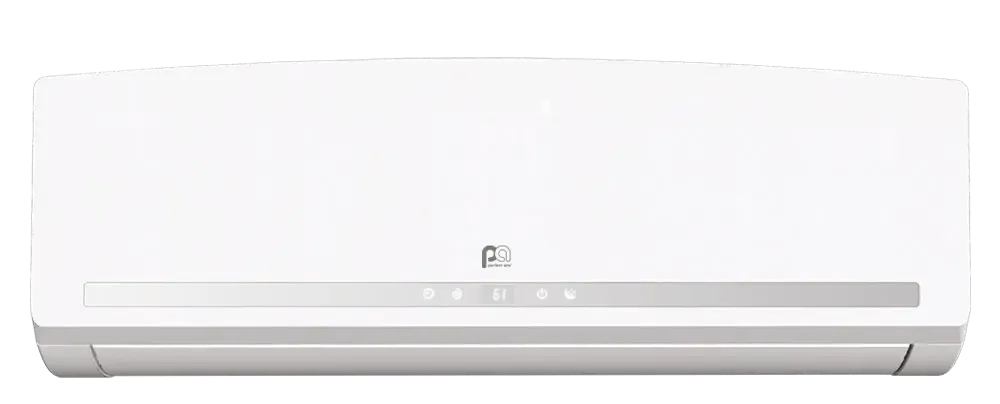

Perfect Aire DIY 9,000 BTU Quick Connect Multi-Zone Wall Mounted Air Handler
Perfect Aire offers the 3PAMSHQCW09-U230 Indoor air handler which provides the ability to easily install a Perfect Aire Multi-Zone DIY Mini-Split System.
With Perfect Aire, you can customize the lengths of the precharged quick connect linesets.
FEATURES
- 9,000 BTU Indoor Air Handler
- Easy attach wall bracket and indoor unit with digital display, remote control, vertical & horizontal auto swing, and side knock-outs to allow piping installation from right or left side
- Pre-wired 25’ foot communication cable connects indoor and outdoor units
- Each indoor unit includes an accessory kit with a 14′ drain tube, collar, and 2 rolls of vinyl tap
- Energy Star certified
PRODUCT SPECIFICATIONS
| Perfect Aire DIY 18,000 BTU 22 SEER Dual Zone Heat Pump System 9 9 - Wall Mounted | |
|---|---|
| Manufacturer | Perfect Aire |
| Refrigerant | R410A |
| Electrical | 230 V. 1 Phase 60 Hz |
| Tonnage | 1.5 Ton |
| System Tonnage | 1.5 Ton |
| Mini-Split Type | Wall Mounted |
| Zone Compatibility | Multi Zone |
| Indoor Units | 9 9 |
| Resources |
|
| Safety Information | |
| Perfect Aire DIY 18,000 BTU 22 SEER Multi-Zone Heat Pump Condenser | |
| Weight (in lbs) | 20.000000 |
| Manufacturer | Perfect Aire |
| Cooling BTU | 18,000 BTU |
| Heating BTU | 18,000 BTU |
| Refrigerant | R410A |
| Mini-Split Type | Wall Mounted |
| Zone Compatibility | Multi Zone |
| Height | 26.5 |
| Width | 34 |
| Warranty | 1 Year Unit Replacement / 1 Year Compressor / 1 Year Parts |
| Safety Information | |
| Perfect Aire DIY 9,000 BTU Quick Connect Multi-Zone Wall Mounted Air Handler | |
| Weight (in lbs) | 24.250000 |
| Manufacturer | Perfect Aire |
| Cooling BTU | 9,000 BTU |
| Heating BTU | 9,000 BTU |
| Refrigerant | R410A |
| Liquid Line | 1/4" |
| Suction Line | 3/8" |
| Mini-Split Type | Wall Mounted |
| Height | 11 |
| Width | 33 |
| Warranty | 1 Year Unit Replacement / 1 Year Compressor / 1 Year Parts |
| Safety Information | |
