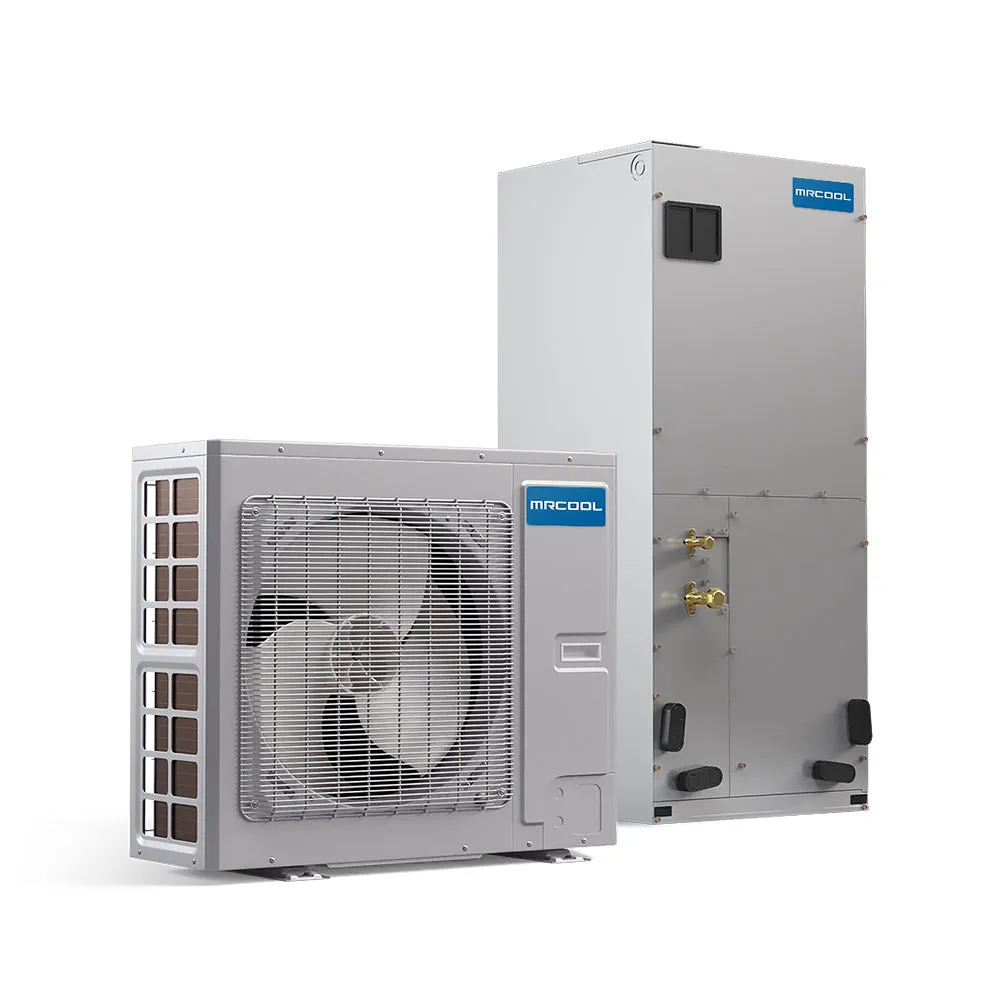

MRCOOL® Universal 2 to 3 Ton 20 SEER Central Heat Pump Split System Upflow/Horizontal - MDU18024036

Elevate your comfort and efficiency with the 2 to 3 Ton 20 SEER MrCool Universal Central Heat Pump Split System – your all-season solution for unparalleled heating and cooling performance. This innovative system utilizes cutting-edge technology, featuring a DC inverter compressor that adapts to your dynamic heating and cooling needs. Experience the perfect balance of warmth in winter, refreshing coolness in summer, and exceptional energy efficiency throughout the year.

Unlike conventional heat pump split systems, the MrCool Universal stands out with its ability to finely modulate performance based on demand fluctuations. The DC inverter compressor allows the system to seamlessly adjust capacity up or down, ensuring optimal efficiency in any weather condition. This intelligent design not only saves you valuable time and money but also provides long-term peace of mind.

Exceptional in its class, the MrCool Universal Heat Pump defies extreme temperatures, continuing to heat even in chilling conditions as low as -22 degrees. The heart of its extraordinary capabilities lies in the sophisticated DC inverter compressor and intelligent internal control system. Operating at reduced capacity for extended periods translates to significant cost savings, while the system's ability to scale up performance in response to outdoor temperature changes adds unparalleled versatility. Achieve 100% cooling capacity at scorching temperatures up to 110 degrees Fahrenheit, 100% heating performance at a frigid minus 5 degrees, and sustained heating down to an impressive minus 22.

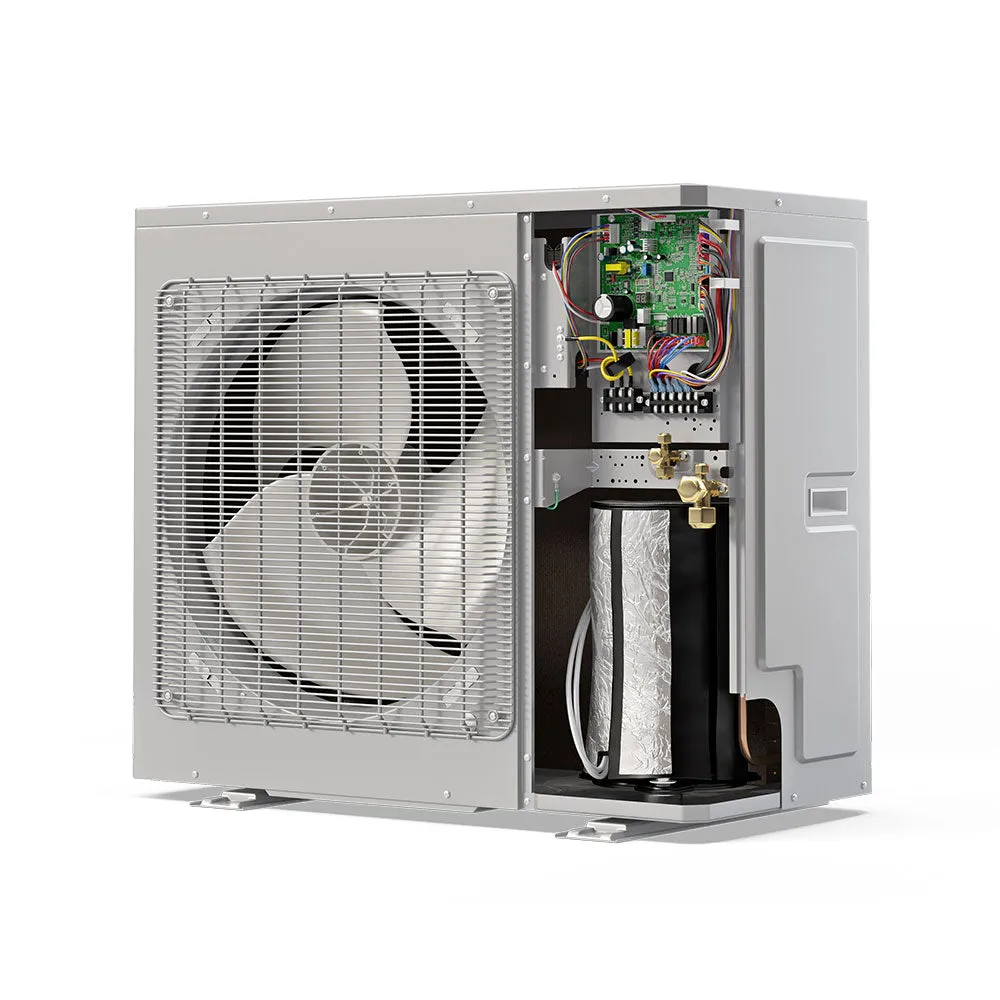

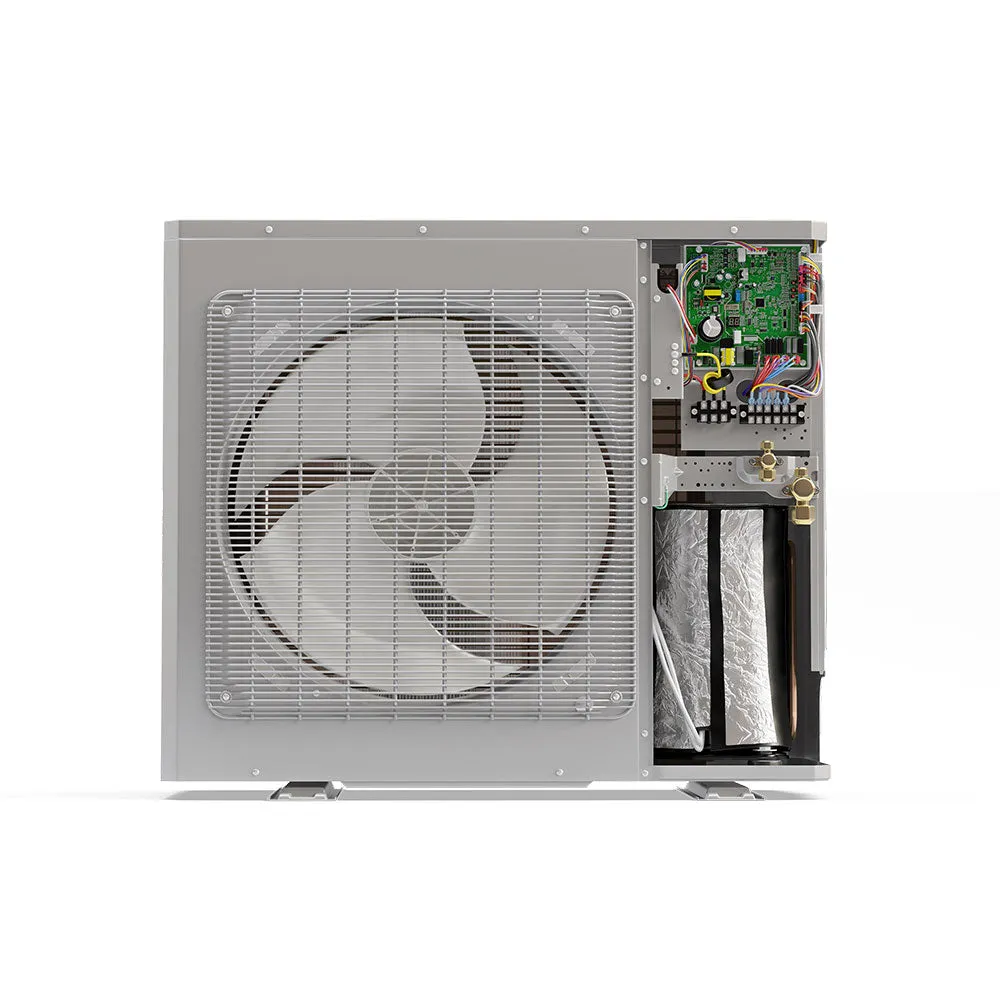

Performance excellence is not the only hallmark of the 2 to 3 Ton 20 SEER MrCool Universal Central Heat Pump Split System. The condenser boasts an array of features, including an auto-reset internal overload protector, direct drive fan motor, inner groove copper tube-aluminum fin, gold fin corrosion protection, automatic defrost, and an electronic expansion valve. With a compact footprint and a shallow profile, the condenser is designed for efficiency without compromising space.

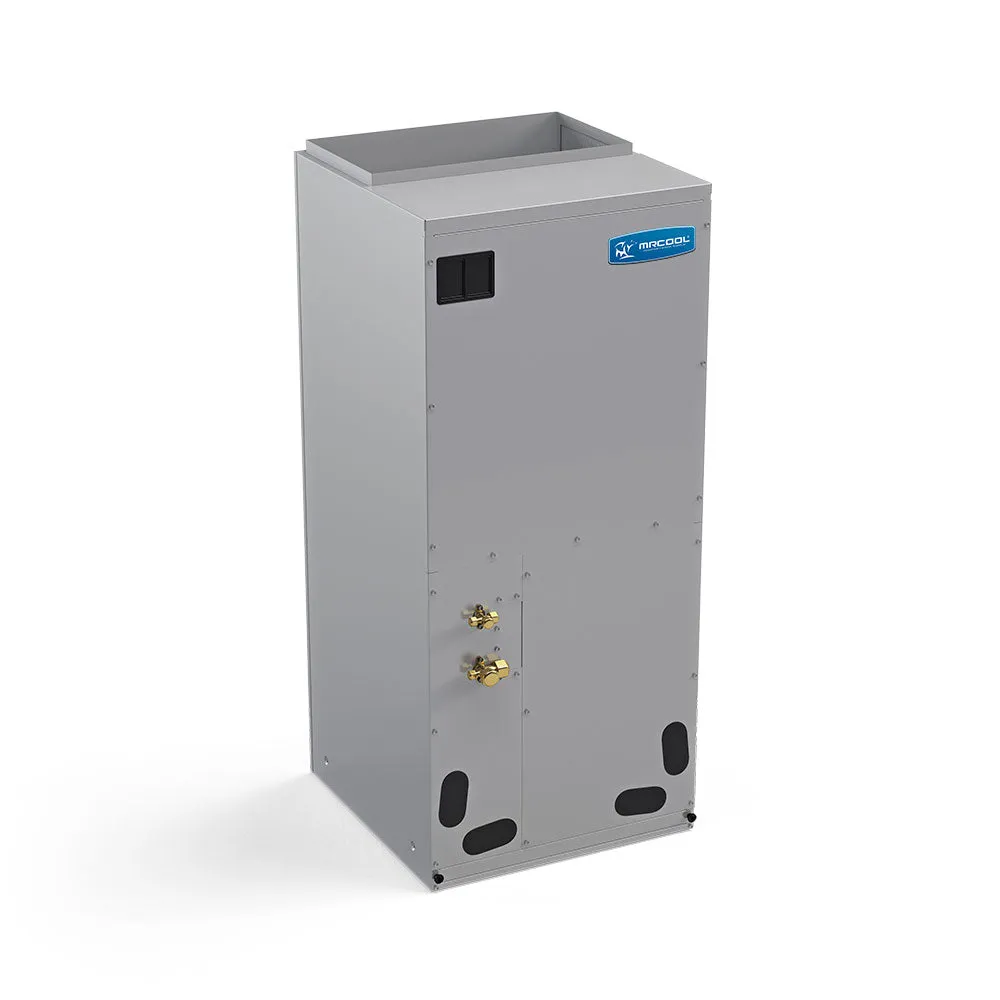

The air handler complements the condenser with features such as an electric box assembly, fan motor, secondary drain pan, primary drain pan, and the flexibility to accommodate an auxiliary heat kit.

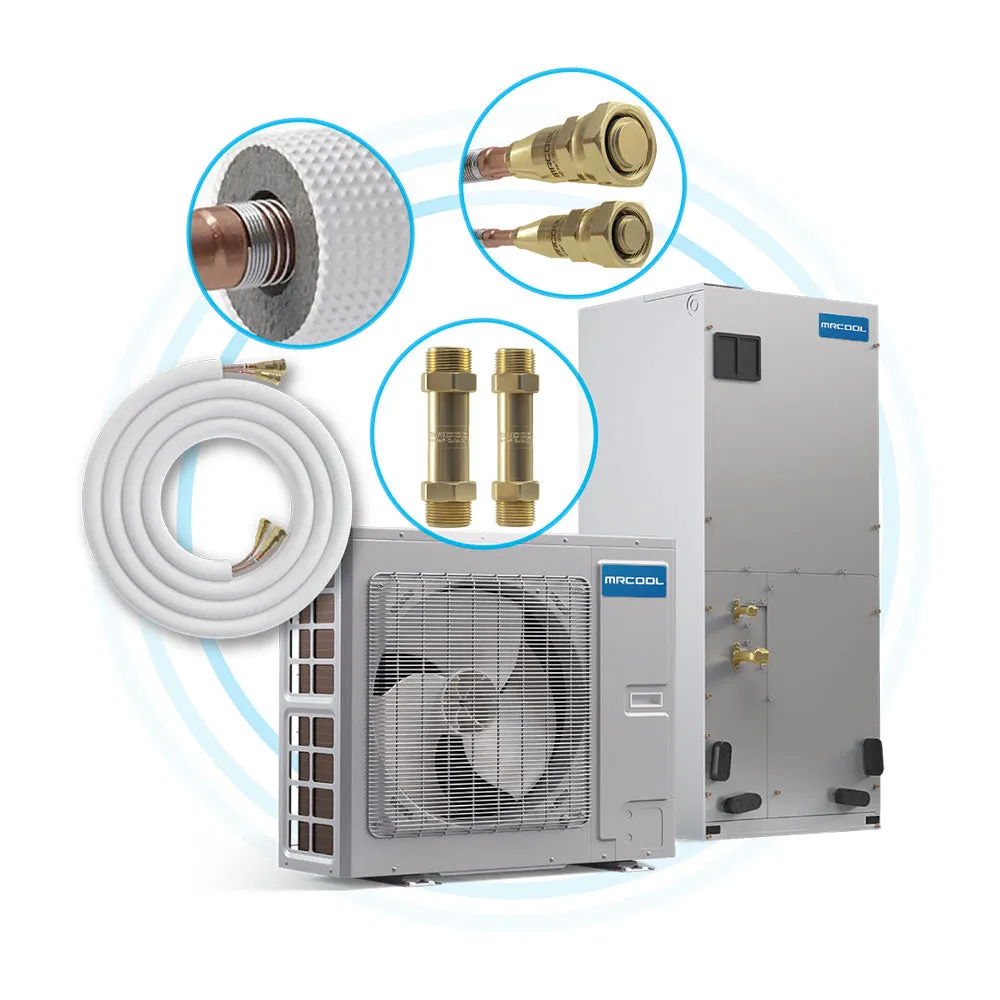

Discover the convenience of the MrCool No-Vac Quick Connect Line Set, a game-changer in installation efficiency. This kink-resistant line set comes precharged with R410a refrigerant and employs Quick Connect fittings, eliminating the need for specialized tools. Installing the Universal Split System with the No-Vac Quick Connect Line Set is a breeze – no cutting, no brazing, no vacuuming, and no charging. What used to take hours can now be completed in minutes.

Invest in your comfort with confidence, as the 2 to 3 Ton 20 SEER MrCool Universal Central Heat Pump Split System is backed by a robust manufacturer's warranty. Homeowners who register their Universal within 60 days of installation enjoy a 10-Year Limited Parts Warranty. And when you choose Mini Split Systems Direct, you benefit from our knowledgeable tech support, ensuring a smooth experience from purchase to installation and beyond. Upgrade your comfort – order the MrCool Universal now!

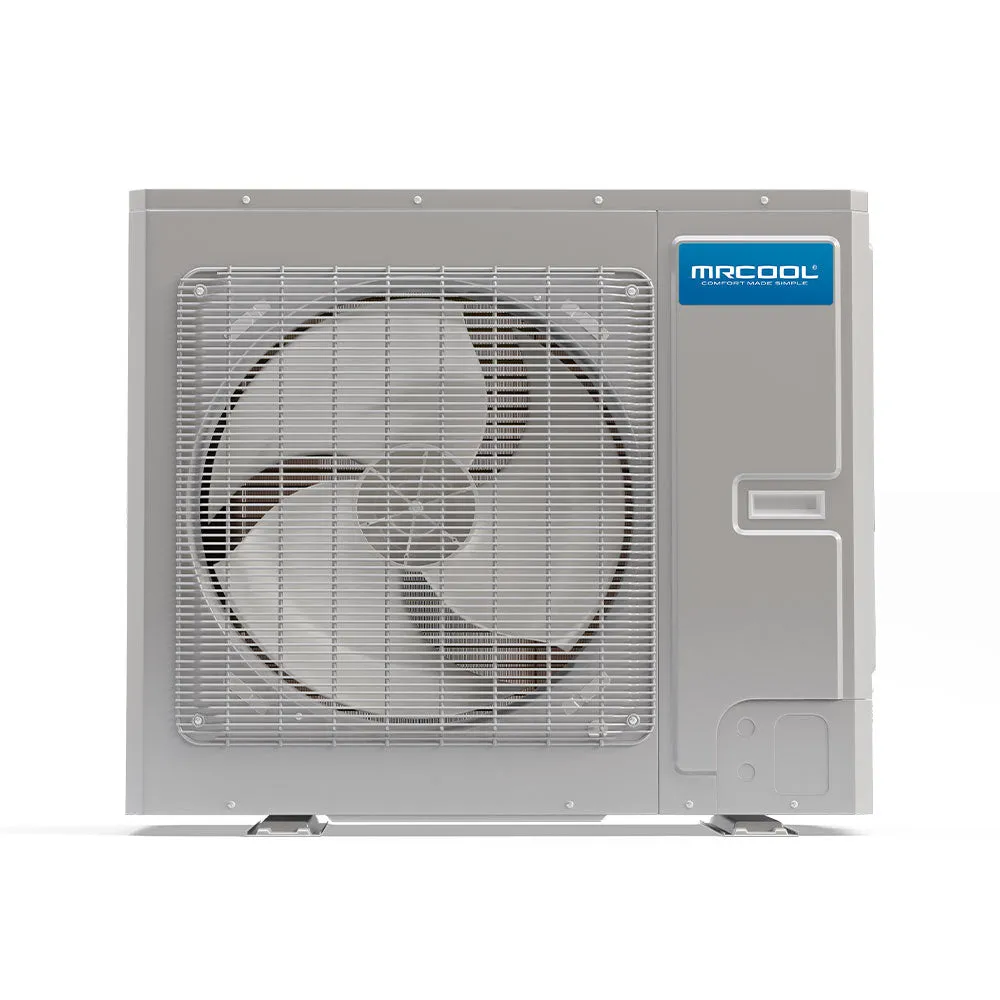

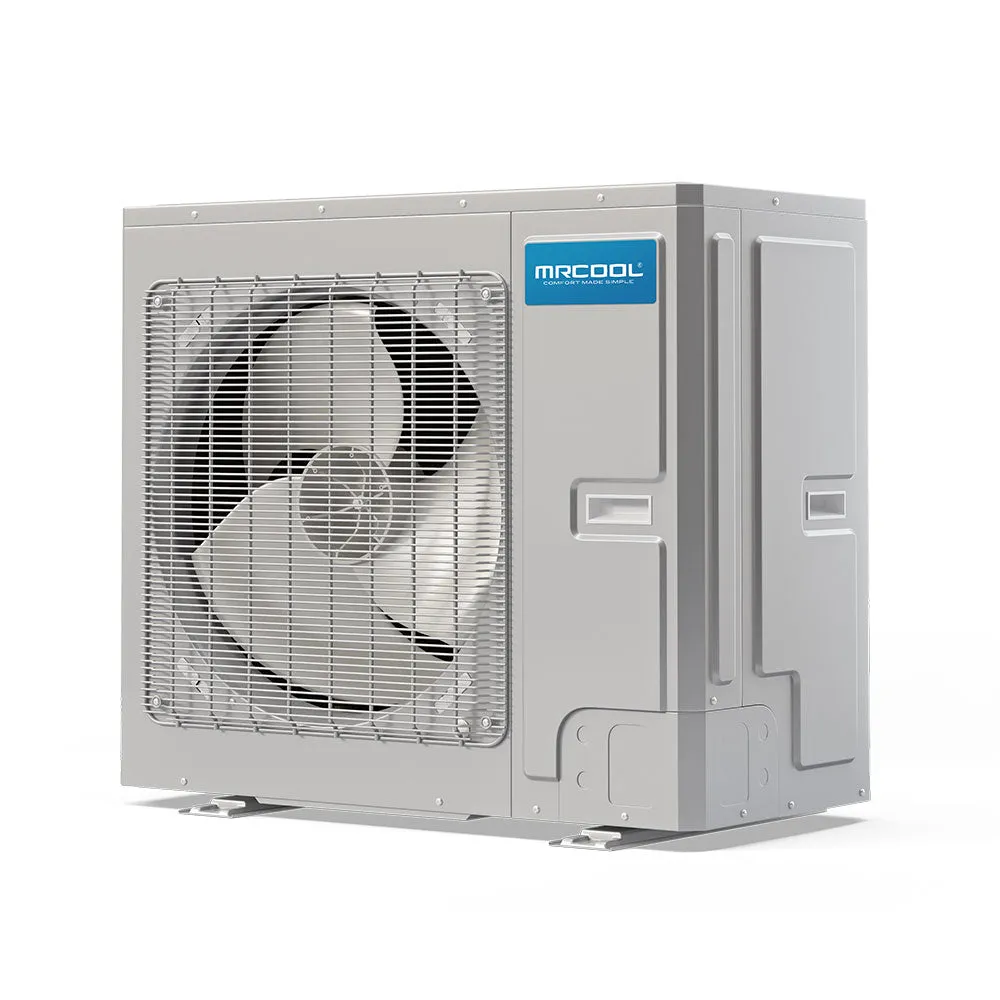

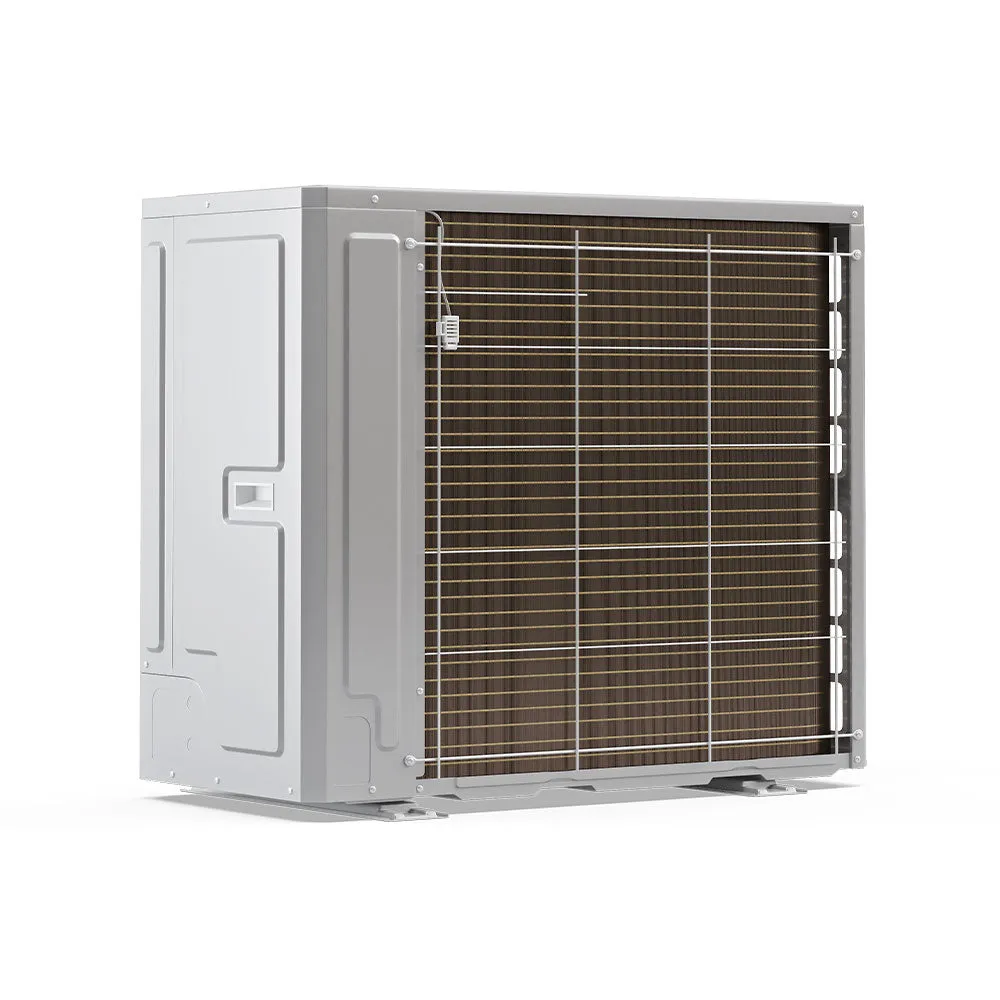

2 to 3 Ton 20 SEER MrCool Universal Central Heat Pump Condenser - MDUO18024036

  • 2 Ton Mode: 20 SEER, 3 Ton Mode: 18 SEER
  • Coverage Area Up to 1,500 square feet
  • Ultra Wide Operating Temperature Range
  • Gas Furnace Not Required
  • Slim design allows more storage for warehouse inventory
  • Compatible with any third party air handler and thermostat including WiFi/Nest
  • Ideal for zero lot line homes, strict sound restriction, conventional installations, and unit replacements
  • Rapid cooling and heating
  • Internal Fan Blade Creates Low Noise
  • Maximum savings while running
  • Factory Charged R410A
  • ETL and AHRI certified

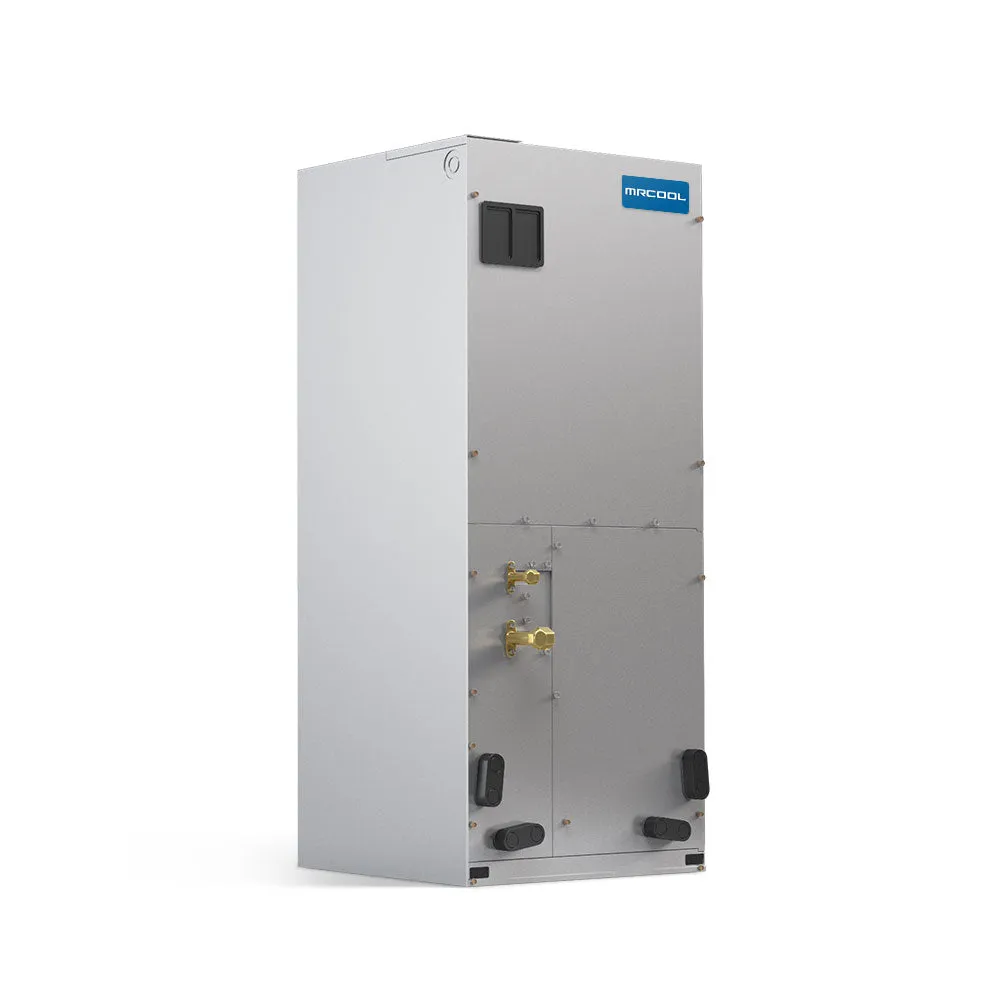

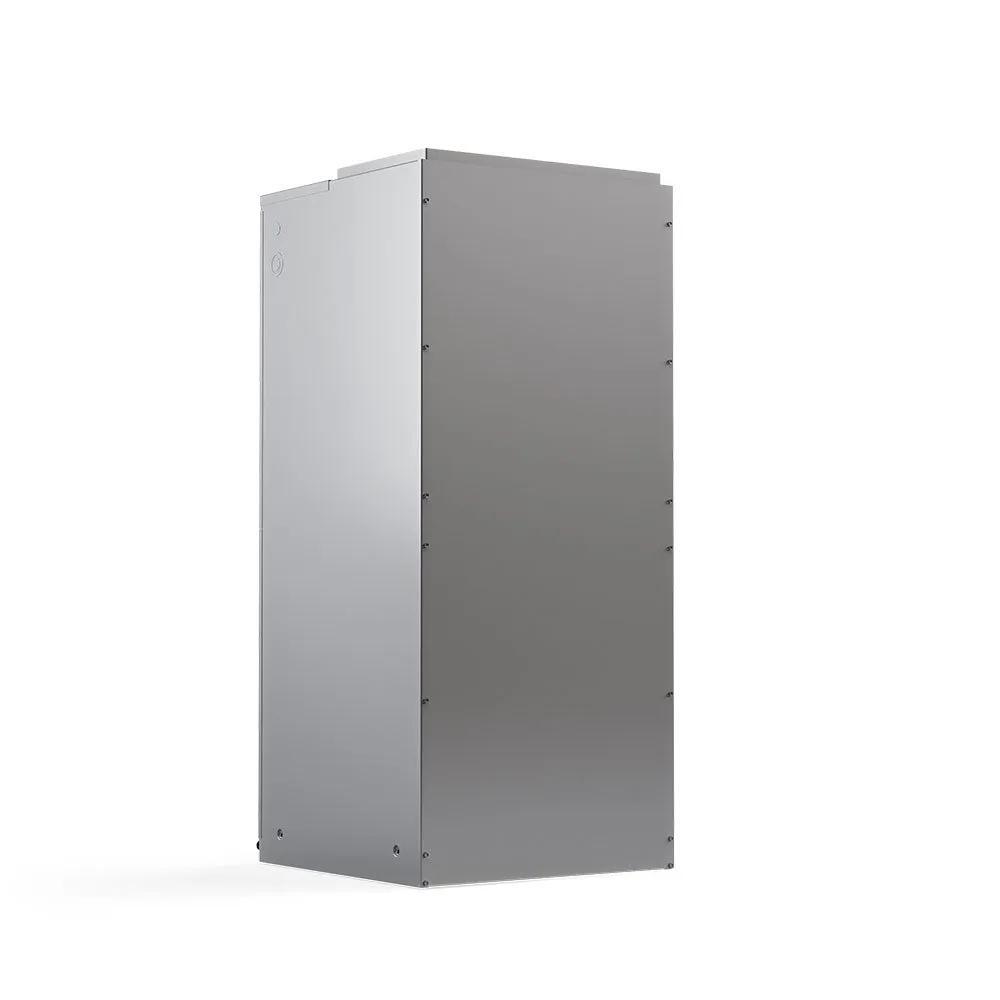

2 to 3 Ton MrCool Universal Air Handler - MDUI18024036

  • 2 Ton Mode: 20 SEER, 3 Ton Mode: 18 SEER
  • Ultra Wide Operating Temperature Range
  • Quick Connect, Flared, & Sweat fittings allow for universal installation
  • Multi-positional installation (compatible with upflow and horizontal applications)
  • Gold Fin® condenser: corrosion resistant - live on the coast? Don't worry, our condenser is built to resist long term corrosion
  • Accommodates up to a 10kW Backup Heat Strip
  • Factory Charged R410
  • ETL and AHRI certified

    Bundled System Specifications:

    Brand MRCOOL
    Model MDU18024036
    UPC 810035931107
    AHRI Number 210410117
    Bundle Avg Coverage Area 1,250 - 1,700 Sq Ft
    Bundle Cooling and Heating Capacity 2 Ton, 2.5 Ton, 3 Ton
    Bundle Cooling and Heating Efficiency 19 SEER and Above
    EER 12.5 (2 Ton), 11 (3 Ton)
    Heat Pump Efficiency (HSPF) 10.5
    Series Universal
    Region Compatibility Nationwide
    California Residents Prop 65 WARNING



    Condenser Specifications:

    Model MDUO18024036
    UPC 810512032921
    Avg Coverage Area 1,000 - 1,700 Sq Ft
    Compressor Inverter
    Cooling Capacity 1.5 Ton, 2 Ton, 2.5 Ton, 3 Ton
    CFM 3000 in 2 Ton Mode, 3470 in 3 Ton Mode
    Min Ambient Cool (F) 5 ~ 129.2
    Min Ambient Heat (F) -22 ~ 75.2
    Electrical Phase 1-Phase
    Cycle 60
    Heat Pump Efficiency (HSPF) 10.5
    Line Set Connection Type Quick Connect, Flared, or Sweat
    Max Line Set Length (FT) 164 / 5
    Liquid Line Size 3/8 inch
    Max Fuse Breaker (A) 35
    Min Circut Ampacity (A) 24
    Primary Cooling Capacity 24,000 - 36,000 BTU
    Primary Heating Capacity 24,000 - 36,000 BTU
    Product Height (in) 32.3
    Product Length (in) 18
    Product Width (in) 37
    Product Weight (lbs) 240.3
    Refrigerant R-410a
    Refrigerant Volume 148.8 oz
    Cooling Efficiency 19 SEER and Above
    Series Universal
    Suction Line Size 3/4 inch
    System Application Type Central Split Systems
    Voltage 208-230
    Decibel Rating
    55 dBA
    Metering Device EEV
    UL Recognized
    No
    UL Listed
    No
    ETL Listed
    Yes
    ETL Certified
    Yes
    LEED Certified
    No
    Energy Star Compliant Yes
    Energy Star Certified
    Yes
    AHRI Certified
    Yes
    Registered Warranty
    10-Year Registered Limited Warranty
    Base Warranty
    5-Year Limited Parts Warranty
    Base Parts Warranty
    5-year limited extended parts warranty
    Has Batteries
    No
    Contains Electronics Yes
    Contains Chemicals
    Yes
    Contains Aersol
    Yes
    Contains Compressed Gas
    Yes
    Proposition 65 Warning
    Yes
    Restricted States
    No



    Air Handler Specifications:

    Brand MRCOOL
    Model MDUI18024036
    UPC 810512032983
    Air Flow Direction Horizontal, Upflow
    Configuration Floor Mounted
    Blower Motor High Efficiency
    Cooling Capacity 2 Ton, 2.5 Ton, 3 Ton
    Electrical Phase 1-Phase
    Cycle 60
    Heat Strip Compatibility Up to 10 kW
    Line Set Connection Type Quick Connect, Flared, or Sweat
    Liquid Line Size 3/8 inch
    Max Fuse Breaker (A) 15
    Min Circuit Ampacity (A) 4
    Product Height (in) 48.25
    Product Length (in) 21.3
    Product Width (in) 21.3
    Product Weight (lbs) 156.5
    Series Universal
    Suction Line Size 3/4 inch
    System Application Type Central Split Systems
    Voltage 240
    CFM 960 in 2 Ton Mode, 1000 in 3 Ton Mode
    Decibel Rating 47 dBA
    Number of Speeds 8 Speeds
    Min Ambient Cool
    5F - 129.2F
    Min Ambient Heat
    -22 F - 75.2F
    Blower Motor HP
    1/2
    Filter Type
    Washable
    Filter Size
    19-5/16 X 20-5/16 X 5/8
    Overload Protection
    Yes
    ETL LISTED
    Yes
    AHRI CERTIFIED
    Yes
    REGISTERED WARRANTY
    10-Year Limited Warranty
    Contains Chemicals Yes
    Proposition 65 Warning
    Yes
