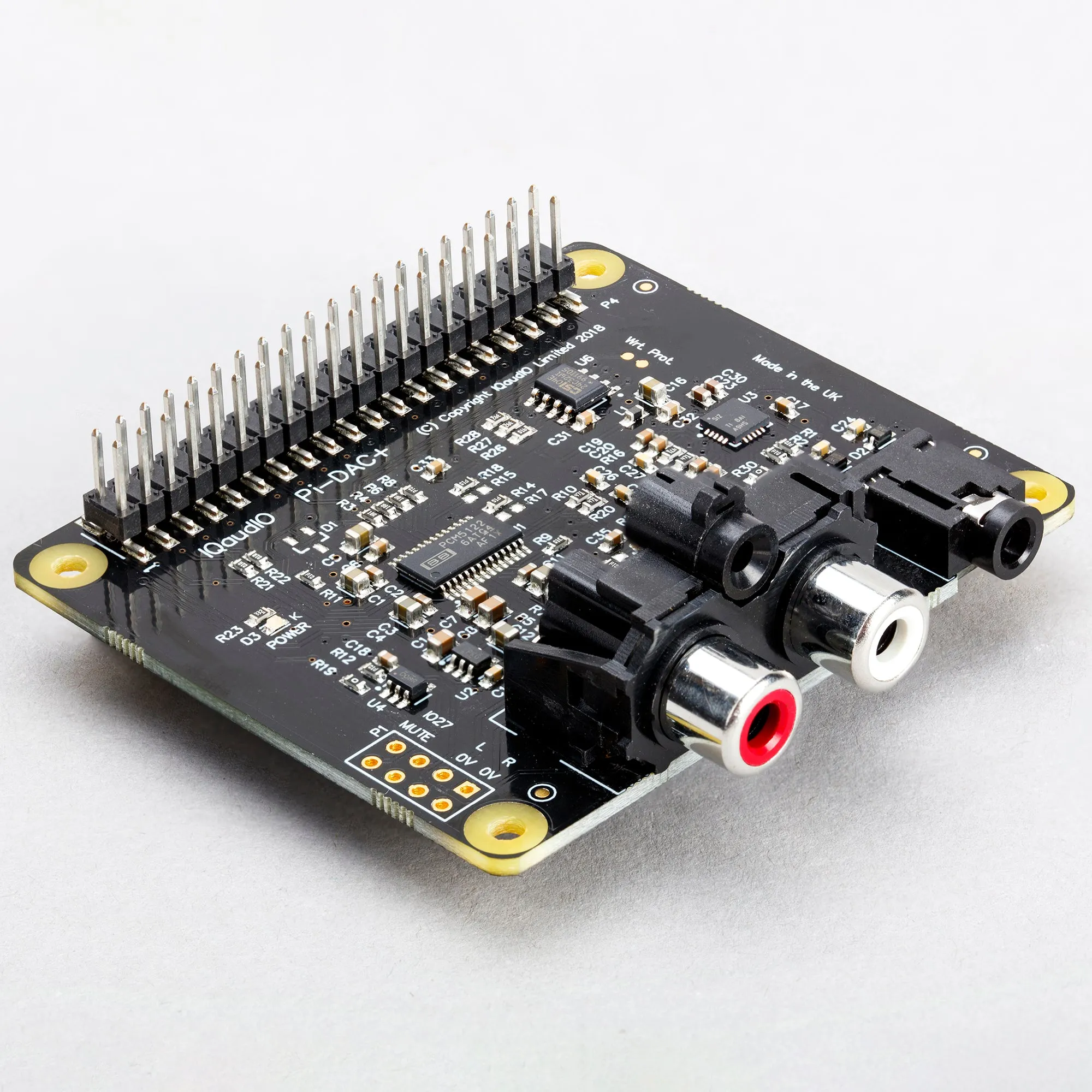

The de-facto audiophile DAC for the Raspberry Pi. This latest revision of our Pi-DAC is pre-programmed for auto detection and exposes the full Raspberry Pi GPIO header providing easy access for buttons, sensors, screens etc.
The Pi-DAC Rev4 plugs directly on the Raspberry Pi, there’s no need to solder or modify your Raspberry Pi and you can be enjoying Full HD audio in minutes. With a pre-programmed HAT EEPROM it'll also auto configure itself in Raspberry Pi OS with zero user effort.
The Pi-DAC feature the great Texas Instruments PCM5122 DAC and also includes a dedicated headphone amplifier delivering a complete all-in one Full HD audio experience for those who listen through headphones. Volume control is built in, eliminating the need for software volume controls of some other audio accessories.
A fully HAT compliant Raspberry Pi expansion board with Pre-programmed EEPROM support, the Pi-DAC delivers Full HD audio from your Raspberry Pi.
- Raspberry Pi HAT (A /B /2/3/3B /4) compliant accessory
- Pre-programmed EEPROM for auto configuration
- Full-HD Linux audio – up to 24-bit/192kHz playback
- Integrated hardware volume control (via ALSA), full 2v RMS
- Built in high quality audio headphone amplifier (TI TPA6133A)
- Class leading audio; 112db SNR, and -93db THD
- Audiophile TI Burr Brown 32-bit/384kHz DAC (TI PCM5122)
- Advanced ESD protection
- Digital I2S audio signals
- Raspberry Pi powered, no external power requirements
- Industry standard audio quality Phono/RCA connectors
- Full GPIO access with no soldering required
- Fully built and tested Raspberry Pi accessory
- Designed and manufactured in the UK
Use raw Linux, , , , , PiMusicBox, AirplaySync, MDP or similar and listen to internet radio, your own digital music library, or streaming music services such as Spotify – all in magnificent audio quality. The IQaudIO Pi-DAC easily supports 24-bit / 192kHz file formats but is equally at home with lower quality MP3s bringing your music alive sonically.
Please note: this product is the Pi-DAC on its own without any bolts or spacers.
Documentation
You can download the IQAudIO user guide and some useful tools .
