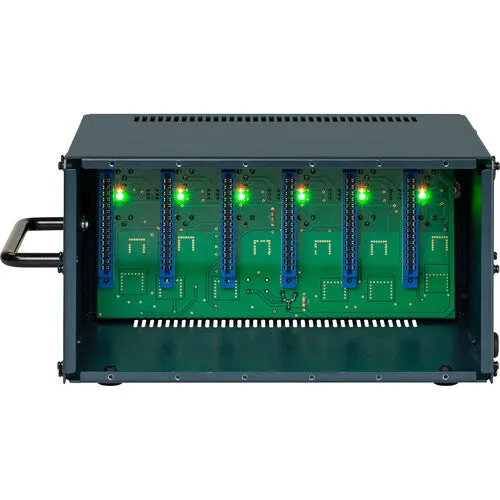

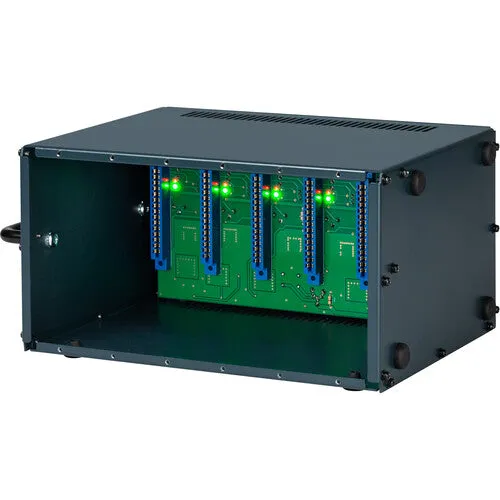

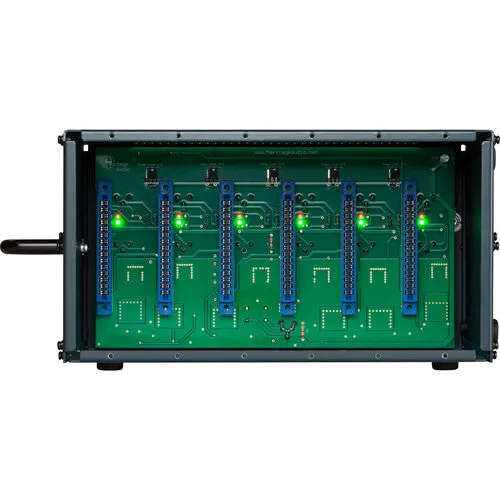

Don't just house your 500 Series modules, bring out the best in them with the Heritage Audio OST-6 V2.0, a 6-slot, professional, rackmountable 500 Series powered enclosure for mobile and project-studio recording. It utilizes the company's On Slot technology to power and provide maximum protection, filtering, and isolation to each slot independently, ensuring that every module installed performs at its peak potential and that no power-hungry or faulty module compromises the performance of another. In addition to reducing interference, many 500 Series modules exhibit lower self-noise and better performance when racked in this enclosure, especially mic preamps.

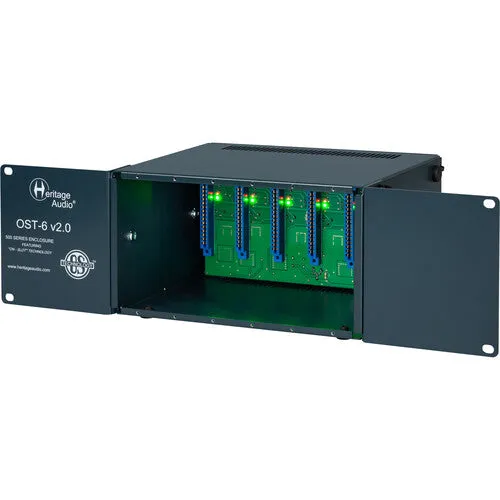

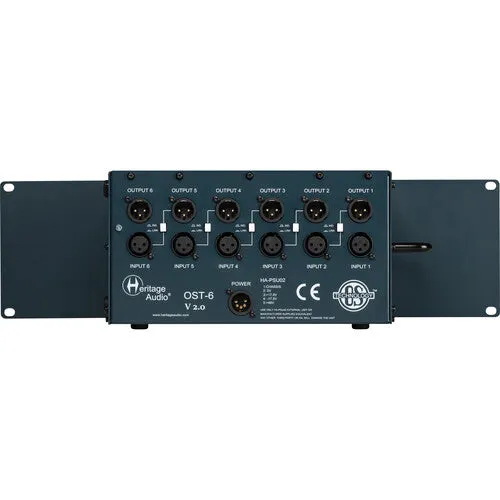

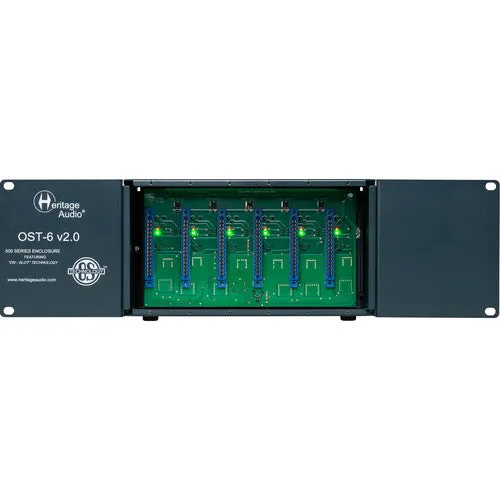

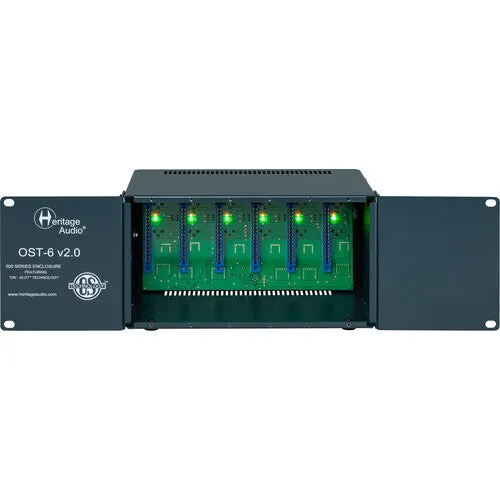

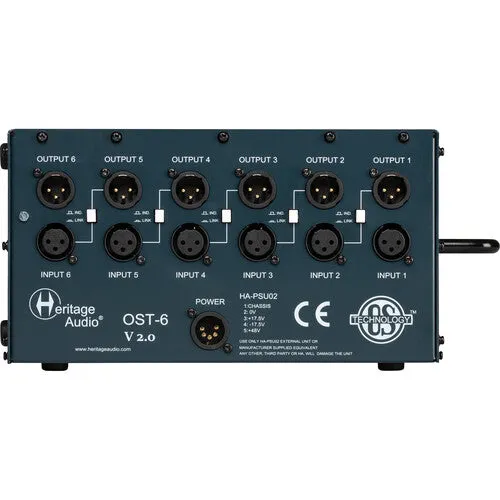

The OST-6 V2.0 is equipped with a new link feature that allows the audio output of each channel to be linked over to the audio input of the next channel at the push of a button (on the back panel), with no patch cables required. Handmade at the company's headquarters in Madrid, Spain, the unit features a rugged, heavy-gauge steel and aluminum body for tour-worthy durability, and sports a built-in handle for easy transport. The OST-6 V2.0 can be mounted in a 3 RU standard 19" equipment rack via the included rack ears. It ships with the required external power supply.
Safe, Clean Power for Up to Six 500 Series Modules
- The OST-6 V2.0 supplies up to 400mA per rail per slot, or 1.8A total ( 2.0A noncontinuous), whichever is reached first.
- The phantom power supply delivers up to 140mA total.
- Utilizes gold-plated XLR jacks and edge connectors.
Widest Compatibility with All 500 Series Modules
- The OST-6 V2.0 is designed for powering any 500 Series module or device, ensuring both demanding double-wide modules or power-hungry class-A or vacuum-tube modules receive the power they need, and adjacent modules remain unaffected.
What's On Slot Technology?
- The OST-6 V2.0 enclosure has individual power supplies and separate regulation, filtering, and protection for each channel slot, minimizing the interaction of separate modules. It ensures that not only do the most demanding 500 Series modules get the power they require to achieve higher performance in terms of self noise and crosstalk, but also that modules do not affect adjacent modules negatively.
The OST-6 V2.0 at a Glance
- Six-slot rackmountable 500 Series enclosure for mobile and project-studio recording
- Widest possible range of compatibility with any 500 Series device made
- Each channel individually regulated, filtered, and protected for highest performance, lowest noise, and best protection
- Link feature allows each channel to be linked to the next at the push of a button

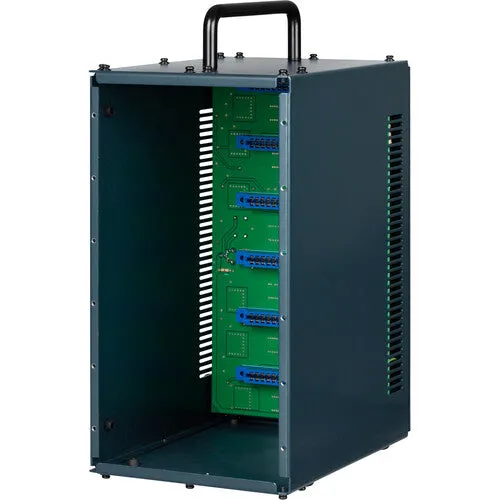

- Vertical architecture accommodates double-wide modules
- Portable solution with detachable rack ears and all-metal handle
- Heavy-gauge steel chassis, rugged finish, and proven durable design
- For Mobile and Project-Studio Recording
- 6 Individually Powered Slots
- Audio Links with Push Buttons
- All-Metal Handle, Rackmountable Design
- Heavy-Gauge Steel Chassis/Rugged Finish
- Handmade in Madrid, Spain
