Description

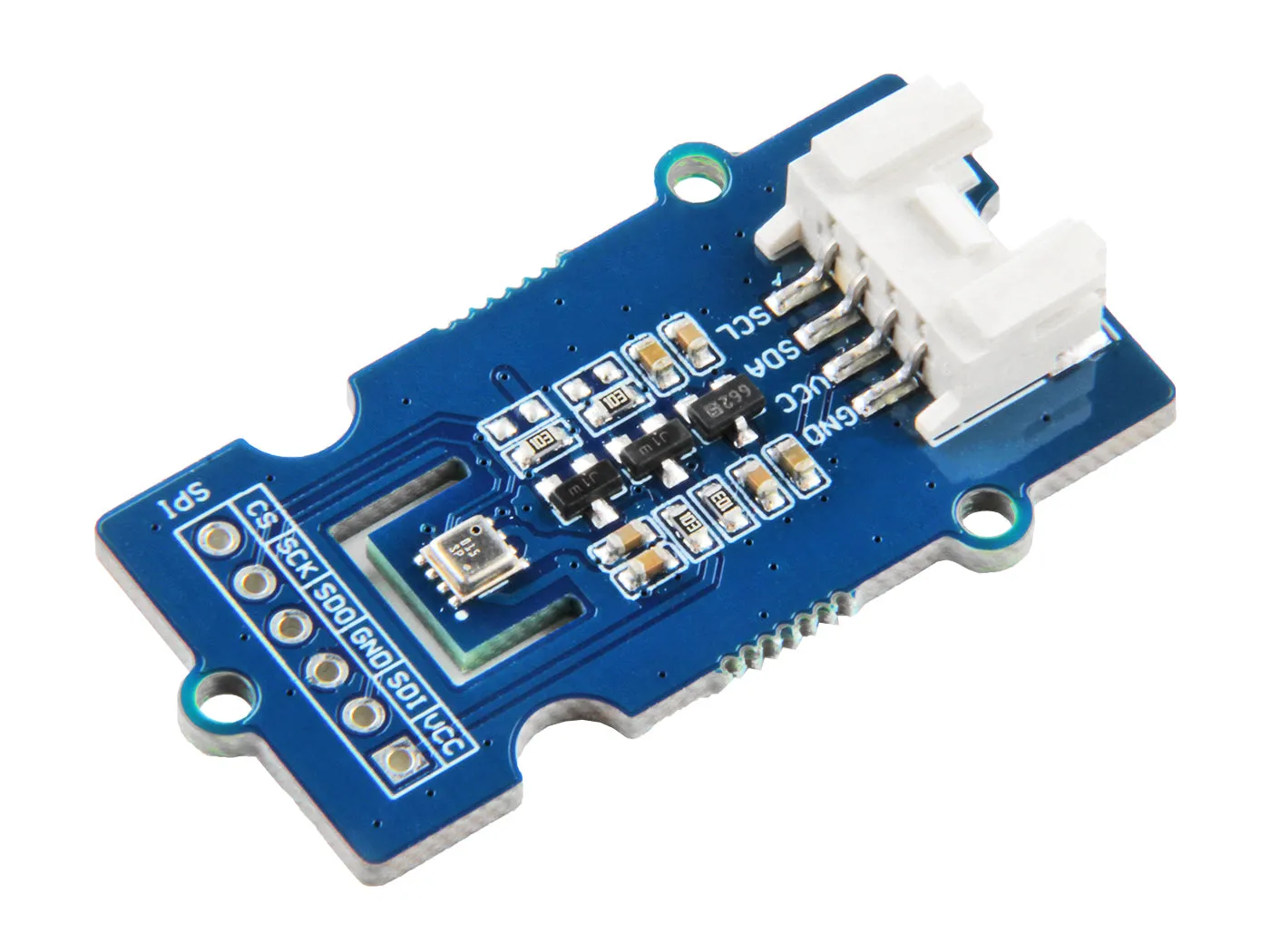

The Grove-Temperature&Humidity&Pressure&Gas Sensor(BME680) is a multiple function sensor which can measure temperature, pressure, humidity and gas at the same time. It is based on the BME680 module. The 4-in-1 function is integrated on such a small module, it will be very beneficial to apply on IOT or GPS devices.
Features
-
4-in-1 for multiple measurement
-
low consumption
-
Wide measurement range
-
Optional output:
Individual humidity, pressure and gas sensors can be independently enabled/diabled
Typical Applications
-
Indoor air quality
-
Home automation and control
-
IOT device
-
Weather forecast
-
GPS enhancement(e.g. time-to-first-fix improvement, dead reckoning, slope detection)
-
Indoor navigation(change of floor detection, elevator detection)
-
Vertical velocity indication(risk/sink speed)
Pin Map
Technical Details
| Dimensions | 40mm x 20mm x 7mm |
| Weight | G.W 9.1g |
| Battery | Exclude |
| Operating Voltage | 3.3V/5V |
| Operating Range | -40~ 85℃; 0-100% r.H.; 300-1100hPa |
| Humidity Absolute Accuracy | ± 3%r.H. (20-80 %r.H.,25℃) |
| Humidity Resolution | 0.008 %r.H. |
| Pressure Absolute Accuracy | ± 0.6 hPa (300-1100 hPa, 0-65℃) |
| Pressure Resolution | 0.18 Pa |
| Temperature Absolute Accuracy | ± 0.5℃ （25℃， At,25）； ± 1℃ （0-65℃, At,full） |
| Temperature Resolution | 0.01℃ |
| Digital Interface | I2C(up to 3.4MHZ)/ SPI(3 and 4 wire, up to 10MHz) |
| I2C address | 0x76(default)/ 0x77(optional) |
Part List
| Grove - Temperature, Humidity, Pressure and Gas Sensor (BME680) | 1 |
| Grove cable | 1 |
