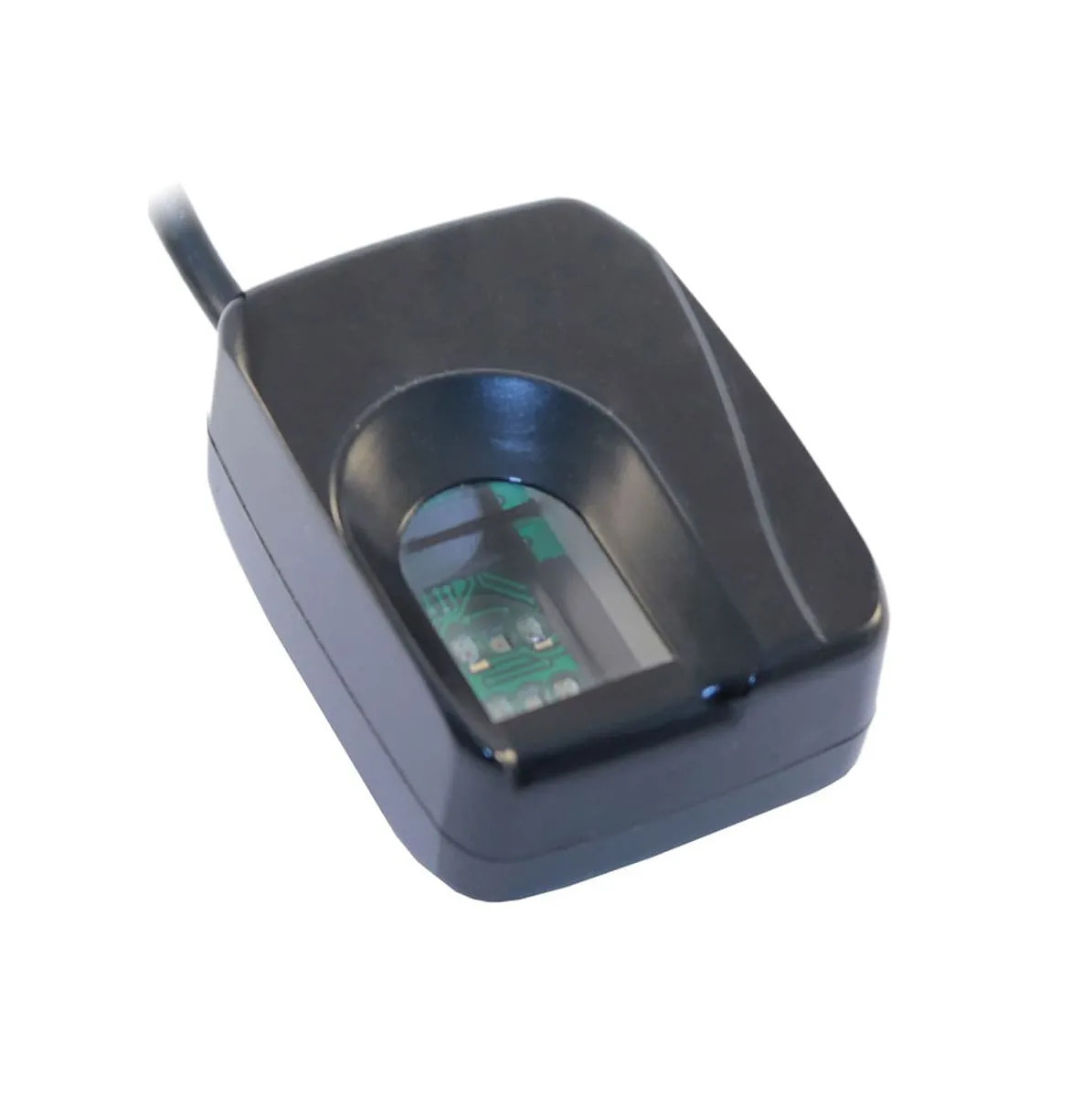

Futronic's FS80H USB2.0 Fingerprint Scanner uses advanced CMOS sensor technology and precise optical system to deliver a high quality fingerprint image. It can capture an almost un-distorted raw fingerprint image into PC in 100ms and is good for any fingerprint recognition application.
The finger scanning window is a crown glass with a thickness of 14mm. It is much more reliable and robust compared to any semiconductor type fingerprint sensor.
The finger is illuminated by 4 infra-red LEDs during scanning and the light intensity is automatically adjusted according to scanning fingerprint's characteristics (wet, dry, blurred, etc) to optimize the quality of the captured fingerprint image.
Special electronic circuit is built into FS80H to do Live Finger Detection (LFD). With appropriate software in PC, user can select this LFD feature so that only live finger's fingerprint will be scanned into PC. Fake fingers made from silicone rubber, play-doh, etc, will be rejected. And the LFD feature is included in all Futronic's standard software.
Futronic FS80H USB 2.0 Features
- Precise optics – allow the scanning of practically undistorted fingerprint images.
- Live Finger Detection – rejects fake fingers made from silicone, rubber, play-doh or other materials. This feature may be turned on or off in software.
- Infra-red illumination – allows scanning of wet, dry, blurred and other problematic fingers.
- Rugged sensor – thick (14 mm) crown glass used for platen. Practically indestructible scanner surface.
bioCOLLECT App Users
- Android Users: For those purchasing scanners for the bioCOLLECT app, the FS80H requires the additional purchase of an OTG adapter. Please ensure you purchase the correct adapter that fits your specific phone.
- IOS Users: There is no existing adapter for the FS80H to make it compatible with an iPhone. Please look at the or as an alternative.
- All bioCOLLECT App Users: Fulcrum highly recommends using the scanner as the preferred scanner for the bioCOLLECT app. It is more versatile and functional across all IOS, Android, and Windows platforms. The fingerprint scanner has also been certified by the FBI to meet the PIV specification.
Tech Specs
| Scanner Name | Futronic FS80H USB2.0 Fingerprint Scanner |
| Manufacturer | Futronic Technology Co. Ltd. |
| Connection | USB 2.0 |
| Manufacturer Supported OS |
|
| Neurotechnology Supported OS (1) |
|
| Resolution | 500 dpi |
| Image capture area (Platen size) | 16 x 24 mm (0.6" x 0.9") |
| Fingerprint image size | 320 x 480 pixels |
| Sensor type | Optical, CMOS |
| Illumination | Infrared LEDs |
| Device size | 45 x 63 x 26 mm (1.8" x 2.5" x 1.0") |
| Device weight | 120 grams (0.3 lbs) |
| Operating temperature | -10°C ~ 55°C |
Electrical characteristics
- Light source: Infrared LED
- Supply voltage: DC 4.5-5.5V via USB port
- Power consumption:
- active <600mW(during scanning)
- standby <200mW(when scanner is connected PC but no scanning)
- sleep mode <11mW(activated by standard USB bus event only)
- ESD contact - 8KV and air discharge - 16KV, no permanent damage
Product Compatibility
The Futronic FS80H USB 2.0 Reader is compatible with many different software development kits and applications. Below is the list of products that are currently known to support this scanner. Please note that some applications and development kits require specific versions of the drivers to be installed. Please contact us if you need additional information.
Supported Software Development Kits:
VeriFinger Standard and Extended SDK
MegaMatcher Standard and Extended SDK
Supported Applications:
FbF (TM) Device Listener
