Product Details
＋
Fluke 2637641 Description

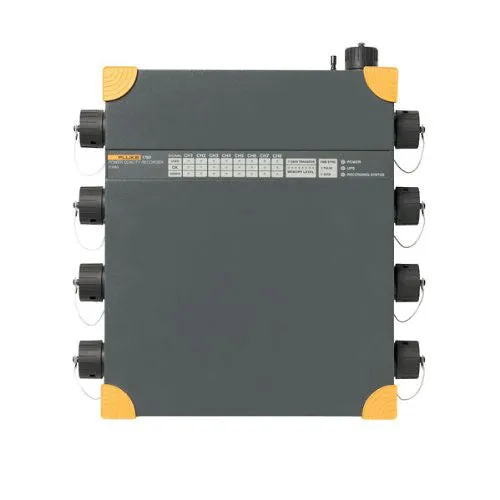

The Fluke 1760 Three-Phase Power Quality Recorder is fully compliant to IEC 61000-4-30 Class-A, for advanced power quality analysis and consistent compliance testing. Designed for analysis of utility and industrial power distribution systems, in medium- and low-voltage networks. The Fluke 1760 provides exceptional flexibility with the ability to customize thresholds, algorithms, and measurement selections. The 1760 power recorder captures the most comprehensive details on user-selected parameters; the supplied PQAnalyze application software enables users uses the in depth measurement and produce sophisticated analysis and reports.
Fluke 2637641 Includes
- (1) Power Quality Recorder W/Trans-Topas,Configured US/Can Range
- (1) 2GB Internal Flash Memory Card
- (1) PQ Analyze Software CD
- (1) Ethernet Cable
- (1) Crosslink Ethernet Cable
- (1) Mains Cable
- (1) Carrying Case/Bag
- (4) Voltage Probes (600V for INTL Set, 1000V for US Set)
- (4) Dual-Range Flexible Current Probes 1000A/200A AC
- (1) GPS Time Sync Receiver
Fluke 2637641 Features
- Fully Class-A compliant: conduct tests according to the stringent international IEC 61000-4-30 Class-A standard
- GPS time synchronization: correlate data with events or datasets from other instruments with precision
- Flexible and fully configurable thresholds and scale factors: allows user to pinpoint specific issues by defining the detailed criteria for detection and recording of disturbances
- 10 MHz, 6000 Vpk waveform capture: get a detailed picture of even the shortest event
- 2 GB data memory: enables detailed, simultaneous recording of numerous power parameters for long periods of time
- Comprehensive software included: provides trend diagrams for root cause analysis, statistical summaries, report writing and real-time data monitoring in the online mode
- Plug and play: allows quick setup with automatic sensor detection; sensors are instrument powered, eliminating the need for batteries
- Power quality statistics according to EN50160
Fluke 2637641 Specifications
| Unit Weight (KG) | 11.04 |
| Unit Height (CM) | 42 |
| Unit Length (CM) | 50.5 |
| Unit Width (CM) | 41 |
