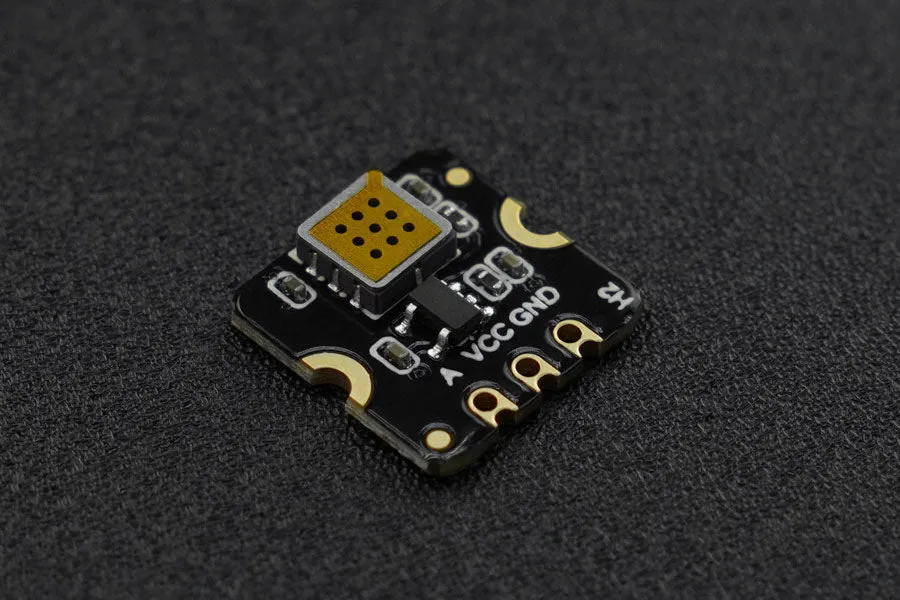

Fermion: MEMS Hydrogen H2 Gas Detection Sensor utilizes leading-edge MEMS technology to provide a compact size (13x13x2.5mm), low energy usage (20mA), low thermal output, quick heating time, and rapid recovery. It can accurately and qualitatively measure hydrogen gas concentrations, making it suitable for hydrogen detection alarms and various other settings.
The MEMS series currently encompasses 11 different types of gas sensors (, , , , , , , , , , ), which can be combined as per specific requirements.
Please note: This sensor is capable of only qualitative measurements. For quantitative measurements, kindly consider purchasing the
Figure: Wiring Diagram of Fermion: MEMS H2 Sensor and Arduino UNO
Precautions for use
Kindly remove the protective film before usage.
To prevent exposure to volatile silicon compounds vapors (such as silicone adhesive, hair gel, silicone rubber, or other locations where volatile silicon compounds are present).
Avoid exposure to high concentrations of corrosive gases (such as H2S, SOX, Cl2, HCl, etc.).
Prevent contamination from alkalis, alkali metal salts, and halogens.
Refrain from prolonged exposure to extreme environments (such as high temperatures, high humidity, high pollution).
Avoid contact with water, condensation, and freezing.
Minimize excessive vibration, impact, and dropping.
Please refrain from employing this module in systems that involve personal safety concerns.
For extended periods of non-usage, it is advisable to preheat the module for at least 24 hours.
Features:
Compact size, measuring only 13*13*2.5mm
Low power consumption, operating current 20mA
High sensitivity and rapid response recovery
Advanced MEMS technology
Applications:
Air quality monitoring: measures the level of H2 and other pollutants in the ambient air.
Automotive emission control: monitors the H2 emission from fuel cell vehicles and adjusts the fuel cell operation to optimize the performance and efficiency.
Industrial safety: detects the leakage or exposure of H2 and other flammable gases in industrial processes or workplaces.
Specification:
Gas detected: Hydrogen (H2)
Detection range: 0.1-1000ppm
Operating voltage: 3.3-5V
Operating current: 20mA
Output signal: Analog voltage
Sensitivity: R0(in air)/Rs(in 200ppm H2) ≥ 5
Operating temperature: -10-50
Operating humidity: 15-90%RH (non-condensing)
Lifespan: ≥5 years (in air)
Dimension13×13 x 2.5mm/0.0.51×0.51x0.1"
Documents:
Product Includes:
Fermion: MEMS H2 Sensor (breakout) × 1
2.54mm pitch header pin × 1
