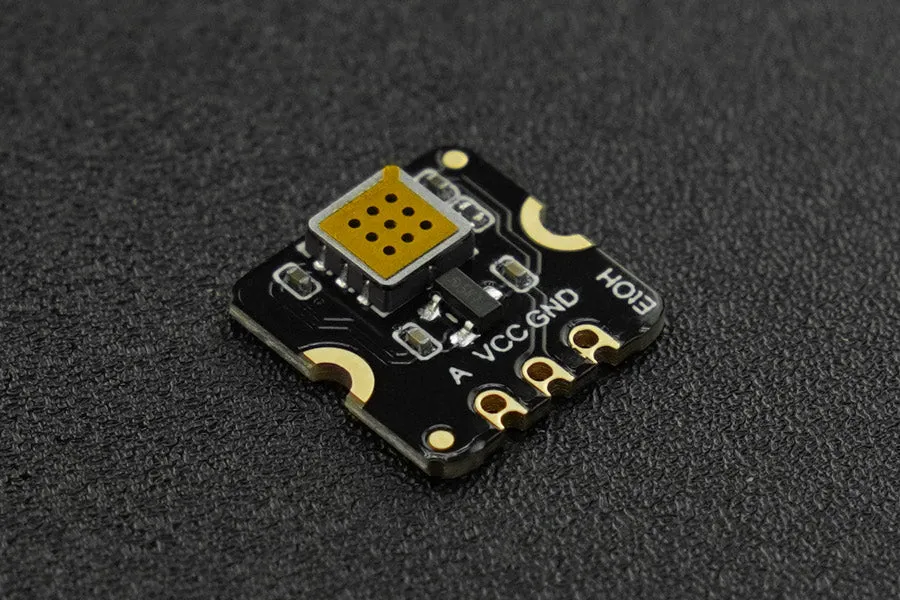

Fermion: MEMS Ethanol EtOH Gas Detection Sensor incorporates advanced micro-electromechanical system (MEMS) technology, featuring a 13x13x2.5mm size, 20mA power consumption, low heat generation, and a short preheating time & fast recovery rate. It is capable of quantitatively detecting ethanol concentrations and is suitable for applications such as ethanol gas leakage detection and portable ethanol detectors.
The MEMS series currently encompasses 11 different types of gas sensors (, , , , , , , , , , ), which can be combined as per specific requirements.
Please note: This sensor is capable of only qualitative measurements. For quantitative measurements, kindly consider purchasing the
Figure: Wiring Diagram of Fermion: MEMS EtOH Sensor and Arduino UNO
Precautions for use
Kindly remove the protective film before usage.
To prevent exposure to volatile silicon compounds vapors (such as silicone adhesive, hair gel, silicone rubber, or other locations where volatile silicon compounds are present).
Avoid exposure to high concentrations of corrosive gases (such as H2S, SOX, Cl2, HCl, etc.).
Prevent contamination from alkalis, alkali metal salts, and halogens.
Refrain from prolonged exposure to extreme environments (such as high temperatures, high humidity, high pollution).
Avoid contact with water, condensation, and freezing.
Minimize excessive vibration, impact, and dropping.
Please refrain from employing this module in systems that involve personal safety concerns.
For extended periods of non-usage, it is advisable to preheat the module for at least 24 hours.
Features:
Compact size, measuring only 13*13*2.5mm
Low power consumption, operating current 20mA
High sensitivity and rapid response recovery
Advanced MEMS technology
Applications:
Breathalyzer: measures the blood alcohol content (BAC) of a person by analyzing their breath.
Indoor air quality monitoring: monitors the level of volatile organic compounds (VOCs) in the indoor environment.
Food quality control: measure EtOH emission from food samples and determine their shelf life or quality.
Specification:
Gas detected: Ethanol (EtOH)
Detection range: 1-500ppm
Operating voltage: 3.3-5V
Operating current: 20mA
Output signal: Analog voltage
Sensitivity: R0(in air)/Rs(in 150ppm EtOH) ≥ 3
Operating temperature: -10-50
Operating humidity: 15-90%RH (non-condensing)
Lifespan: ≥5 years (in air)
Dimension13×13 x 2.5mm/0.0.51×0.51x0.1"
Documents:
Product Includes:
Fermion: MEMS Ethanol EtOH Gas Sensor (breakout) × 1
2.54mm pitch header pin × 1
