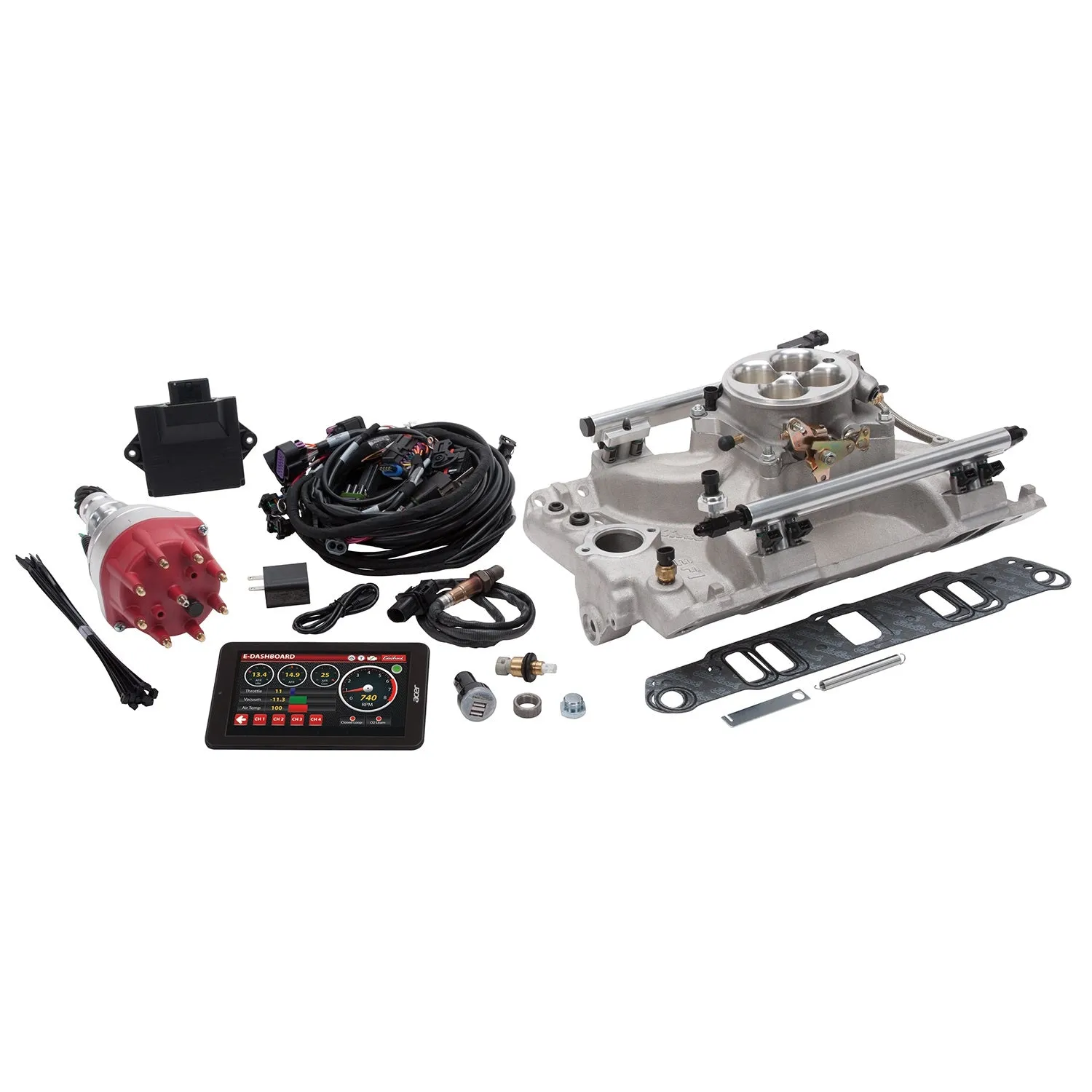

The Edelbrock part #35980 Pro-Flo 4 EFI System for Pontiac 326-455 C.I. engines is equipped with the latest in technology and features. The EFI system comes complete with a traditional 4150-Style satin finish single plane intake manifold and 35 Lb/Hr injectors capable of 550 HP with 58 p.s.i. fuel pressure. Also included is a plug and play single connection distributor designed to work specifically with Pro-Flo 4 and a made in the USA fully terminated high-quality harness with clearly labeled connections to ensure a hassle-free installation. The new Pro-Flo 4 EFI systems feature an all-new ECU with a faster processor, a water proof design and measures half the depth of the previous ECU. It also has an upgraded Bluetooth chip that is faster, more reliable and will not drop connection. We've added more features for the advanced tuner giving you control over air-fuel ratios, ignition curve, idle speed, acceleration fuel, coolant fans, Rev limiter while retaining the simplicity Pro-Flo is known for. The key to the system is our exclusive E-Tuner 4 app with dyno developed base calibrations. The E-Tuner 4 app uses a Bluetooth wireless connection to communicate with the ECU's self-learning capability to continually adjust the calibration to get maximum performance. E-Tuner 4 features a simple and easy to use setup wizard to help you get started. Best of all, the E-Tuner 4 app is free and can be downloaded from the Google Play Store, allowing you to use your personal Android based smart phone or tablet. If you don't have a compatible device, then we also offer kits that include a 7" Android tablet with the E-Tuner 4 app pre-installed. Multiple dash displays are included to allow you to monitor engine vitals with an Android smart phone or tablet.Pro-Flo 4 does not require laptop tuning.

Specifications:

Bore Diameter	1.75
Cylinder Head Type	Sequential Port
Description_ABR	EFI System
Description_ASM	Pontiac:-:326 (5.3L)/350 (5.7L)/389 (6.4L)/400 (6.6L)/421 (6.9L)/428 (7.0L)/455 (7.4)
Description_DEF	Fuel Injection System
Description_DES	FUEL INJECTION
Description_EXT	Edelbrock Pro-Flo 4 EFI System for Pontiac 326-455CID engines. The EFI system comes with a 4150-Style satin finish single plane intake manifold and 35 Lb/Hr injectors capable of 550 HP with 58 p.s.i. fuel pressure.
Description_EXT	Edelbrock Pro-Flo 4 Sequential Port EFI System for Pontiac 326-455 C.I. engines. The EFI system comes with a 4150-Style satin finish single plane intake manifold and 35 Lb/Hr injectors capable of 550 HP with 58 p.s.i. fuel pressure.
Description_FAB	Complete Engineered System For The Ultimate In Performance
Description_FAB	New ECU Preloaded w/80 Dyno-Tuned Calibrations
Description_FAB	Self Learning EFI System
Description_INV	Edelbrock Pro-Flo 4 EFI System Pontiac
Description_KEY	Edelbrock; EFI; Pro-Flo; Pro-Flo XT; EFI; Fuel Injection; Electronic Fuel Injection; Pontiac; 35980
Description_LAB	Pro-Flo 4 EFI Traditional 4150-Style Kit #35980 For Pontiac V8 326-455
Description_LAB	Pro-Flo 4 EFI Traditional 4150-Style Kit #35980 For Pontiac V8 326-455 C.I.D.
Description_MKT	The Edelbrock part #35980 Pro-Flo 4 EFI System for Pontiac 326-455 C.I. engines is equipped with the latest in technology and features. The EFI system comes complete with a traditional 4150-Style satin finish single plane intake manifold and 35 Lb/Hr injectors capable of 550 HP with 58 p.s.i. fuel pressure. Also included is a plug and play single connection distributor designed to work specifically with Pro-Flo 4 and a made in the USA fully terminated high-quality harness with clearly labeled connections to ensure a hassle-free installation. The new Pro-Flo 4 EFI systems feature an all-new ECU with a faster processor, a water proof design and measures half the depth of the previous ECU. It also has an upgraded Bluetooth chip that is faster, more reliable and will not drop connection. We've added more features for the advanced tuner giving you control over air-fuel ratios, ignition curve, idle speed, acceleration fuel, coolant fans, Rev limiter while retaining the simplicity Pro-Flo is known for. The key to the system is our exclusive E-Tuner 4 app with dyno developed base calibrations. The E-Tuner 4 app uses a Bluetooth wireless connection to communicate with the ECU's self-learning capability to continually adjust the calibration to get maximum performance. E-Tuner 4 features a simple and easy to use setup wizard to help you get started. Best of all, the E-Tuner 4 app is free and can be downloaded from the Google Play Store, allowing you to use your personal Android based smart phone or tablet. If you don't have a compatible device, then we also offer kits that include a 7" Android tablet with the E-Tuner 4 app pre-installed. Multiple dash displays are included to allow you to monitor engine vitals with an Android smart phone or tablet.Pro-Flo 4 does not require laptop tuning.
Description_MKT	The Edelbrock Pro-Flo 4 XT EFI Kit #35980 for Pontiac 326-455 C.I. engines is equipped with the latest in technology and features. The EFI system comes complete with a traditional 4150-Style single plane intake manifold and 35 Lb/Hr injectors capable of 550 HP with 58 p.s.i. fuel pressure. Also included is a plug and play single connection distributor designed to work specifically with Pro-Flo 4 and a made in the USA fully terminated high-quality harness with clearly labeled connections to ensure a hassle-free installation. The new Pro-Flo 4 EFI systems feature an all-new ECU with a faster processor, a water proof design and measures half the depth of the previous ECU. It also has an upgraded Bluetooth chip that is faster, more reliable and will not drop connection. We've added more features for the advanced tuner giving you control over air-fuel ratios, ignition curve, idle speed, acceleration fuel, coolant fans, Rev limiter while retaining the simplicity Pro-Flo is known for. The key to the system is our exclusive E-Tuner 4 app with dyno developed base calibrations. The E-Tuner 4 app uses a Bluetooth wireless connection to communicate with the ECU's self-learning capability to continually adjust the calibration to get the maximize performance. E-Tuner 4 features a simple and easy to use setup wizard to help you get started as well as multiple dash displays so you can monitor your engines vitals. The exclusive Edelbrock E-Tuner 4 app is Free and Available for Android and IOS based smart phone or tablet.
Description_SHO	{ Sellable : Yes }
Description_SHP	{ eo : 7in.}
Description_TRA	This kit will require a high pressure EFI fuel delivery system. Fuel delivery systems are available and sold separately. 35980 manifold height: 6.60". Throttle body height: 2.530"
Description_TRA	This kit will require a high pressure EFI fuel delivery system. Fuel delivery systems are available and sold separately. 35980 manifold height: 6.60in. Throttle body height: 2.530in.
Distributor Cap Included	Yes
Engine Make/Size	Pontiac 326-455
finish	Satin
Flange Type	4150
Fuel Injector Type	35 lb/hr
Fuel Pressure Port	1/8-27 NPT
Fuel Rate	35 lbs./hr
Gasket Or Seal Included	Yes
height	10.31
length	30.19
LTL	N
Manifold Height	6.60
Maximum Horsepower	550
Quantity	Kit
RGL	WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
System Type	Traditional 4150-Style Kit
Throttle Body Type	4 Barrel
WARNING CA Proposition 65	Yes
WARNING CA Proposition 65 Message	WARNING: This product can expose you to Lead; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov.
weight	42.0
width	25.25
Wire Harness Included	Yes
Wiring Harness Included	Yes
