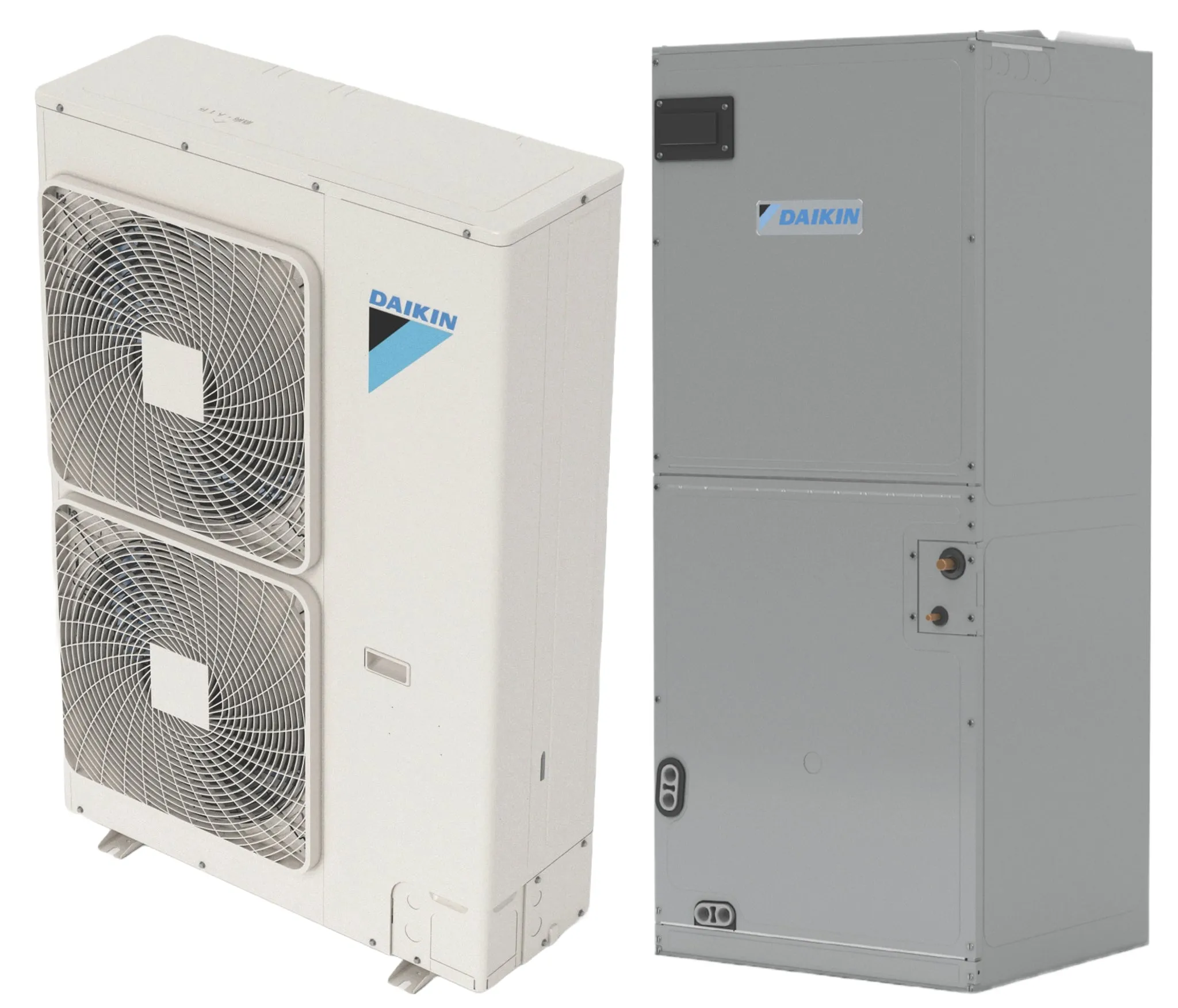

Daikin SkyAir FTQ Ducted 42,000 BTU 16 SEER2 Central Heat Pump Inverter Split System - FTQ42TAVJUD / RZQ42TBVJUA

The Daikin FTQ Ducted line is an alternative to traditional cube style solutions adopting a slim, space saving and quiet outdoor unit and specifically designed and matched indoor air handling unit. The FTQ Ducted can be used in place of your existing system, utilizing existing ductwork, or in new construction where individual zone or room control is not desired. You get the comfort and energy savings advantages of Daikin’s industry leading inverter technology, using a modern heat pump system to heat and cool.

Features:

  • 16 SEER2 / 10.6 EER2 / 9.2 HSPF2 / 3.5 COP
  • Factory Installed Disconnect
  • Full multi-position air handler capable of upflow, downflow, horizontal left, or horizontal right configurations
  • Wide lineup of electric heat (field installed) options from 5kW to 19kW
  • Designed with less than 2% air leakage when tested in accordance with ASHRAE standard 193
  • External static pressure capabilities of up to 0.9 in. w.g. allow for longer duct runs and easily implementing high MERV filtration with appropriate transitions
  • Outside air integration possible
  • Anti-Corrosion Treatment on Heat Exchanger
  • Auto-Restart: The unit memorizes the operation mode, airflow and temperature settings. Should there be a power failure when the unit is in operation, it will automatically return to the same operating conditions when the power is restored.
  • Self-Diagnosis: In the event that a problem develops with the unit, malfunction codes can be displayed on the liquid crystal panel of the remote control for fast and easy fault diagnosis.
  • Superior comfort and high energy efficiency: Inverter technology maintains the desired temperature by varying the speed of the compressor. Since the system runs longer in comparison to standard on/off systems in most environments, filtered air is nearly always flowing. This can eliminate large temperature swings and can help reduce humidity. A big benefit of Daikin inverter technology is that almost continuous operation reduces the system’s energy consumption, just as a car is more efficient traveling on a highway than in stop-and-go traffic. Inverter compressors reduce power consumption as much as 30% compared to conventional fixed-speed equivalents.
  • Worry-free Operation: A conventional system's hard starts generate heat and stress that can damage its vital components. A Daikin FTQ Ducted system starts softly, does not run in stop-start fashion and seldom needs to run at full speed. Its advanced compressor also has fewer parts to wear out. Daikin heat pumps heat well even in low-ambient conditions, so there is no need to use and store fossil fuels.
  • Having no burner inside the house results in: Less maintenance, No risk of fire or gases from spilled fuel, and No risk of injury from carbon monoxide emissions.
  • Easy to Install: A Daikin SkyAir outdoor unit usually takes up less than half the space of an outdoor unit on a conventional system. It is easy to handle and less obtrusive outside the home. Connected by a pair of refrigerant lines, few electrical connections, and no ductwork, indoor and outdoor units can be easily installed in existing spaces with minor disruption and often in a single day’s work. The compact and lightweight designs combined with piping lengths up to 230 ft. and minimal wiring allow installation with minimal time and costs.
  • Feel the difference: Designed for superior heating capacity in low ambient conditions, Daikin FTQ Ducted systems provide comfortable heating operation down to -4°F WB (-20°C WB). This capability can help simplify installation cost and operational cost by eliminating the need for additional supplemental electric heat. As a year round solution, the Daikin FTQ Ducted systems also operate in Cooling mode from 23°F DB (-5°C DB) to 122°F DB (50°C DB).
  • Hear the difference: Daikin FTQ Ducted systems have sound-reducing features such as compressor sound attenuators, but they are also quieter than conventional systems, because they have fewer moving parts and rarely run at full speed. Utilizing inverter technology to maintain comfort settings, Daikin systems most often operate at low speeds with outdoor sound levels in the mid to high 50s dB(A).
  • See the difference: A Daikin inverter system is designed for installation where space is limited, such as with zero lot lines, or limited to roof, wall or terrace areas. The compact and lightweight design, when compared to traditional solutions allows the Daikin inverter system to be used in homes with the strictest of limitations with relative ease.
  • Advanced water-shedding drain pan: Engineered with multiple drain holes and channels providing effective water shedding
  • Individual comfort and control: Daikin systems have an available infrared remote controller allowing you to access all functions at the click of a button.
  • You're always in control, from anywhere in the world, or your living room: It can happen to anyone. You forgot to change the temperature of your heat pump system or air conditioner before leaving the house, or you will be delayed returning home and wish to avoid needlessly heating or cooling your home. What in the past would have resulted in wasted energy is no longer a problem. With the DKN App, you are always in control. You can use your tablet or smart-phone to access your Daikin system via the internet. Requires the Daikin AZAI6WSCDKA Wi-Fi adaptor.

Time-saving installation

  • Available without optional factory installed disconnect (Built to order — model FTQ_TAVJUA)
  • Easily integrate third party accessories such as a humidifier or economizer with on-board contacts
  • Gravity-fed drain connection
  • Designed for zero clearance on three sides and only 24" clearance on the front for service
  • **Downflow requires field installed optional downflow accessory

Warranty:

  • 10 Years Parts and Compressor Warranty.

What's Included:

  • Daikin SkyAir 42,000 BTU 16 SEER2 Heat Pump Inverter
  • Daikin SkyAir 42,000 BTU Air Handler - Multipositional
  • Free Daikin Wired Navigation Controller BRC1E73 ($459.99 Value)
  • Refrigerant Line Set with 3/8" and 5/8" Line Ends (Optional)

System Specifications:

Brand Daikin
Model

Indoor Unit: FTQ42TAVJUD

Outdoor Unit: RZQ42TBVJUA

Capacity Rated (BTU/H)

Cooling: 40,500

Heating: 47,000

COP Rated 3.5
EER2 Rated 10.6
SEER2 16
HSPF2 9.2
AHRI Number 211635178
Energy Star No
Piping Connections

Liquid: 3/8 inch

Gas: 5/8 inch

Drain: 1 inch

Max. Interunit Piping Length 230 ft
Max. Interunit Height Difference 98.4 ft
Chargeless 15 ft
FTQ Additional Charge 1.05 lbs
Amount of Additional Charge of Refrigerant lbs./ft (kg/m) 0.036 (0.0536)
Operating Range - Cooling 23° – 122°F
Operating Range - Cooling with Optional Air Adjustment Grille 0° - 122°F
Operating Range - Heating -4° – 60°F

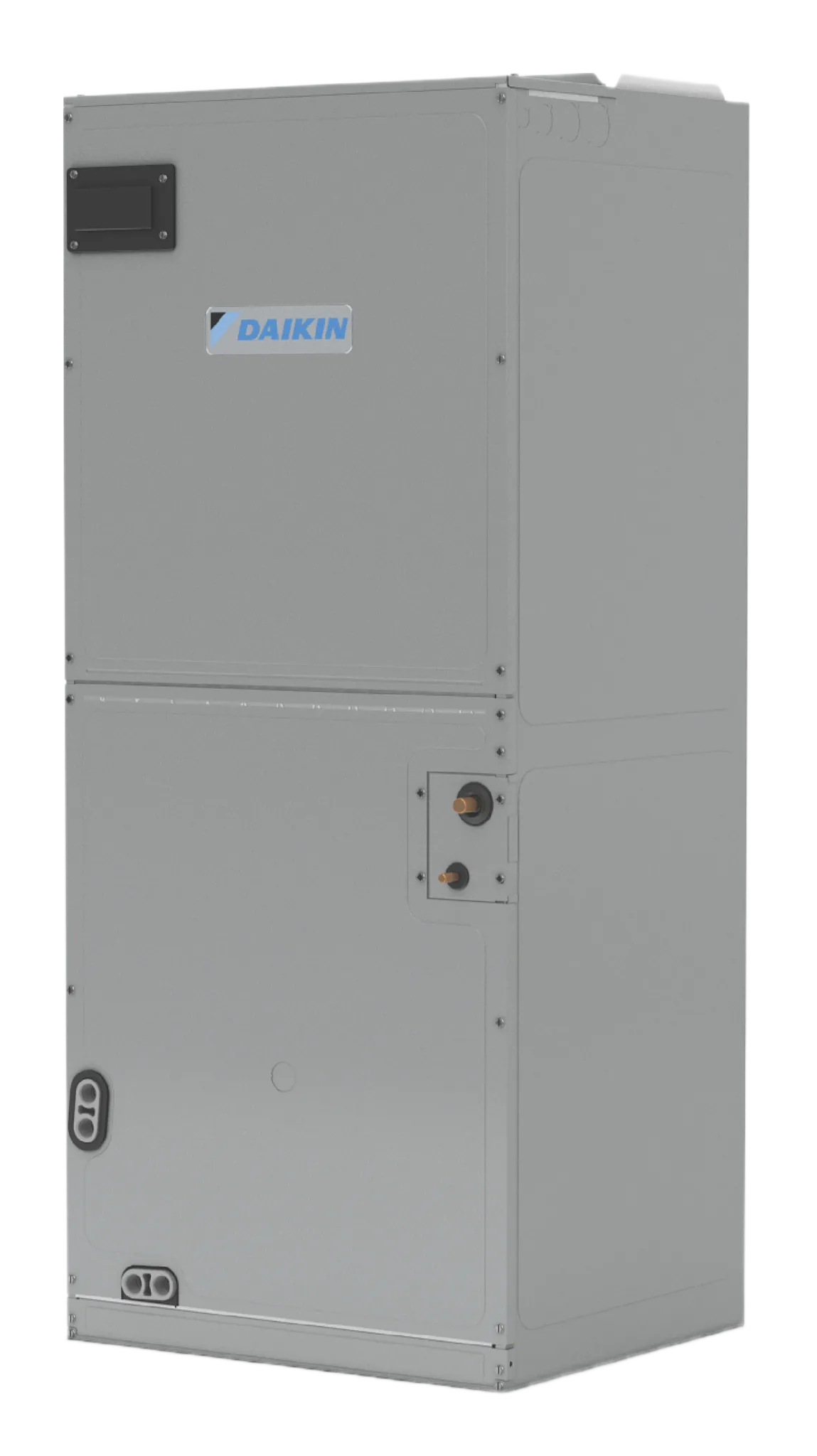

Air Handler Specifications:

Brand Daikin
Model FTQ42TAVJUD
Electrical

Phase: 1

Hz: 60

Volts: 208/230

Minimum Circut Amps: 6.5

Max Overcurrent Protection: 15

HP: 3/4

FLA: 5.2

External Static Pressure in. wg (Pa) 0.9 (224)
Airflow Rate

High: 1400 CFM

Medium: 1190 CFM

Low: 980 CFM

Fan Type: Sirocco Fan
Dimensions (H × W × D) 53.4 x 21 x 21 inches
Weight 150 lbs
Sound Pressure Level (H / M / L / SL) 54 / 50 / 46 dB(A)
Electric Heat Options 5kW, 6kW, 8kW,10kW, 15Kw,19Kw

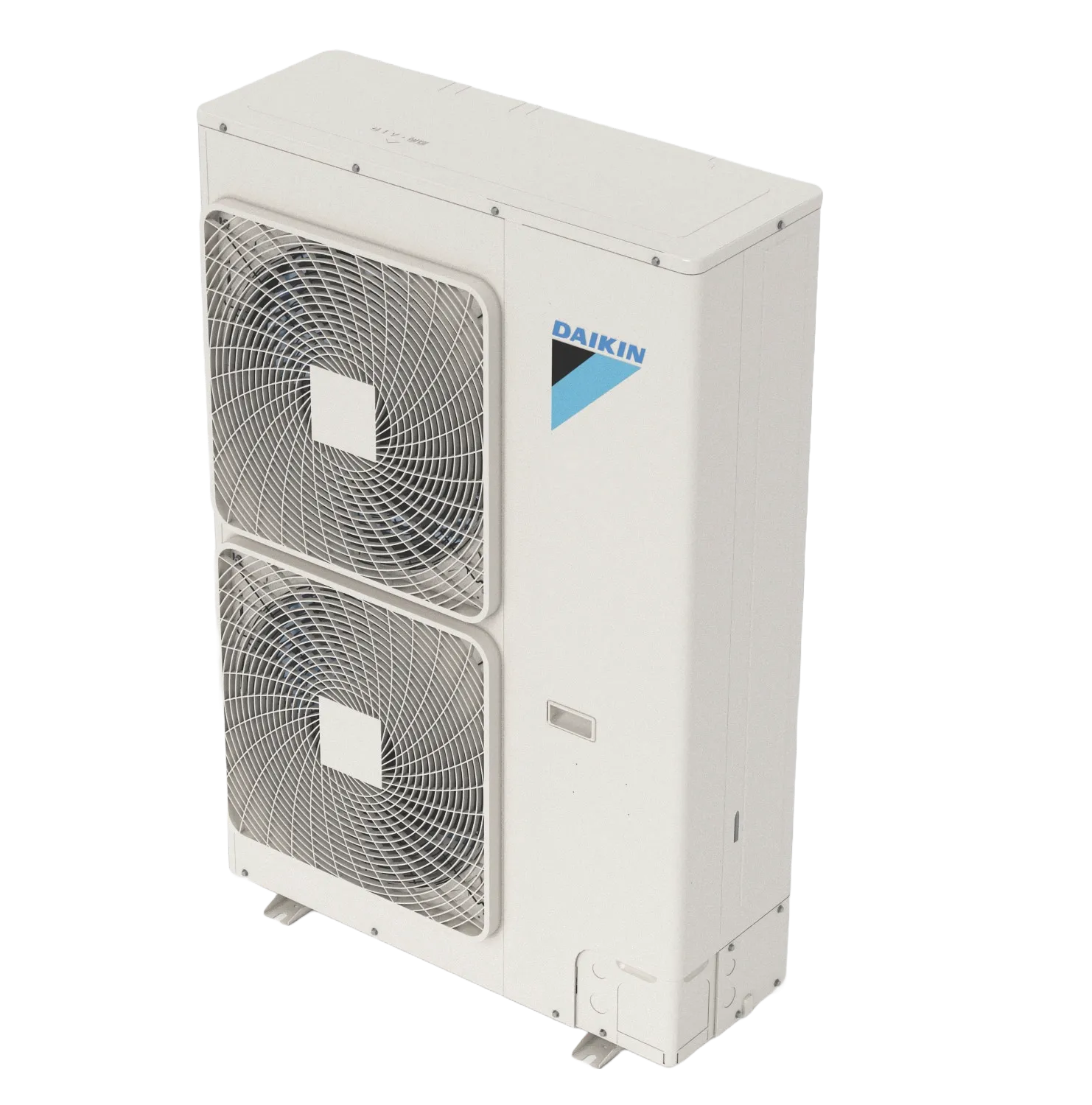

Condenser Specifications:

Brand Daikin
Model RZQ42TBVJUA
Electrical

Phase: 1

Hz: 60

Volts: 208/230

Minimum Circut Amps: 29.1

Max Overcurrent Protection: 35

RLA: 19

FLA: 0.3 0.3

Compressor Motor Output 3,500 W
Safety Devices High pressure switch, Outdoor fan driver overload protector, Inverter overload protector, Fusible plug, Fuse
Refrigerant Control Electronic expansion valve
Refrigerant

Type: R-410A

Charge: 7.9 lbs

Airflow Rate 3,741 CFM
Dimensions (H × W × D) 52-15/16 x 35-7/16 x 12-5/8 inches
Weight 225 lbs
Sound Pressure Level 57 - 59 dB(A)
