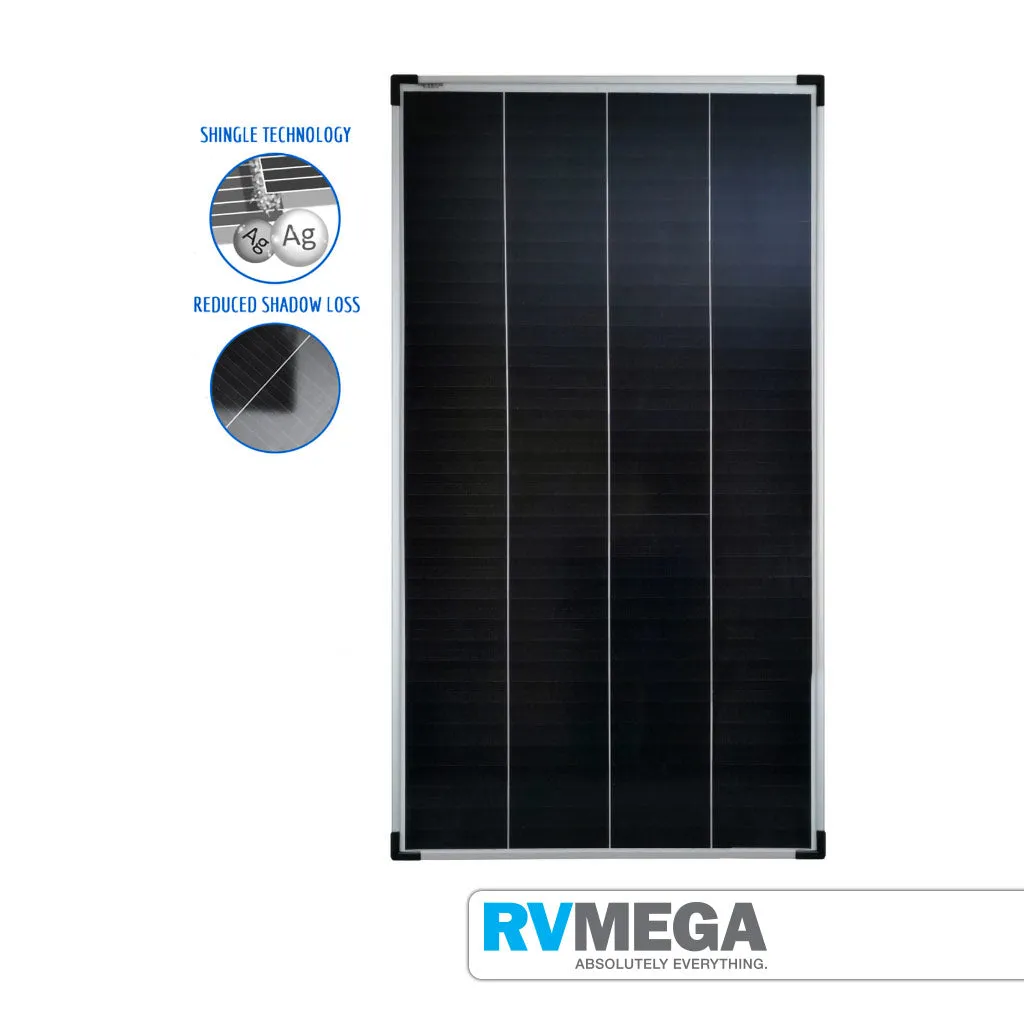

160 Watt Solar Panel

Shingled PERC is a new breakthrough in solar cell technology. This innovative technology for interconnecting the cell minimizes electrical losses from cell to cell which results in higher module efficiency. This high power, high-density Shingled PERC module are very robust and suited to mobile vehcles including Caravan, RV and Boating. The busbar-free structure means only a small proportion of cells are not exposed to sunlight allowing for better performance when shaded.

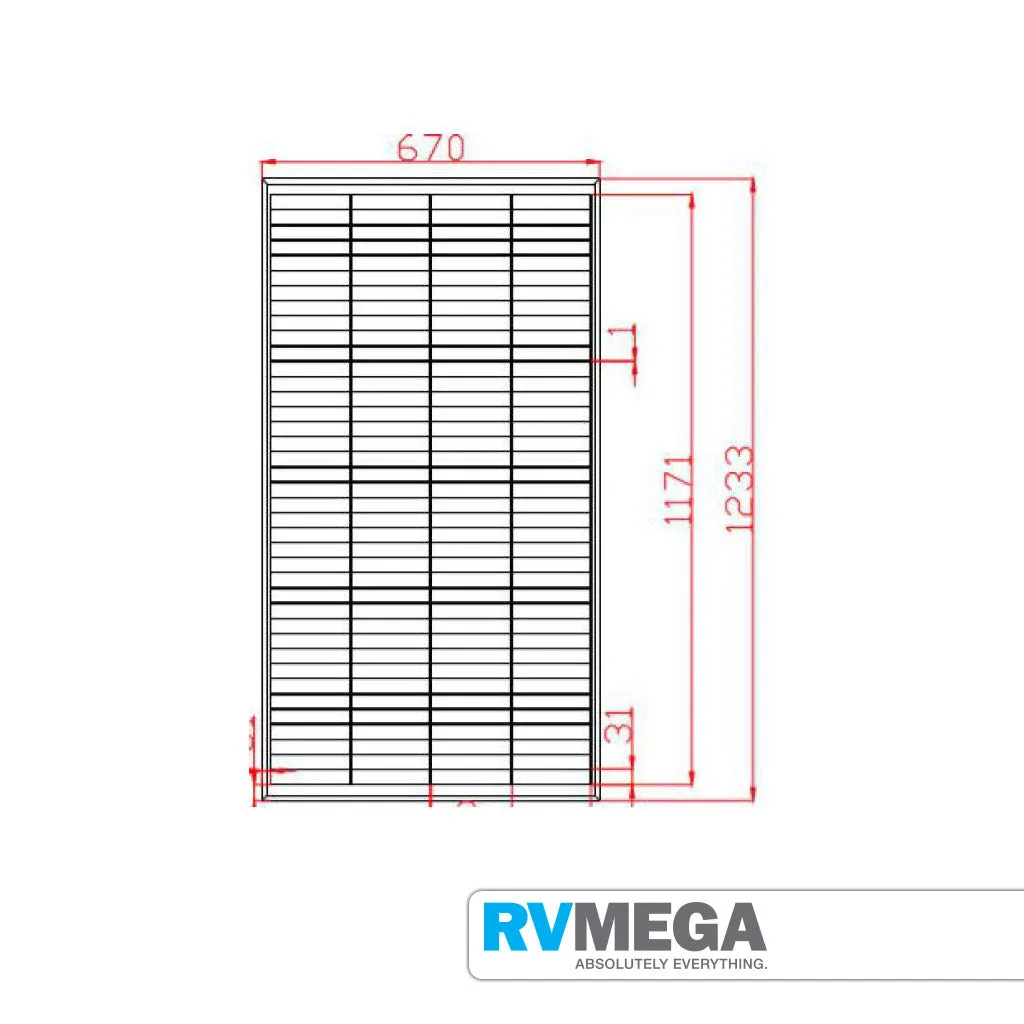

Dimensions

• W1233 x H35 x D670mm

Features

• PERC Solar cells with shingle technology
• Reinforced frame with aluminium angle
• 35mm Frame with a support surface of 1.2mm thickness

Advantages

• More Power Reduced optical and electrical losses. Shadowing also has less effect due to PERC Shingled Cell design.
• Seamless Soldering Shingled Soldering is a new proprietary Module Encapsulation Technology, achieved using Silver Conductive Adhesive instead of BusBars.
• Compact High efficient cells means smaller modules especially when used in Caravan, RV and Marine applications.
• Reduced system cost High component efficiency reduces floor space, BOS, transportation and operation costs at production level.
• Stability Enhanced reliability and stability. Significantly reduces hot spot effect.
• Reliability Avoids cell crack caused by traditional welding process; the components are flexible and compressible, suitable for a variety of harsh environments.
• Performance 10 year product warranty on materials and workmanship, 25 years linear power output warranty.

Specifications

• Peak Power (Pmax): 160.00W
• Max Power Voltage (Vmp): 21.49V
• Max Power Current (Imp): 7.62A
• Open Circuit Voltage (Voc): 25.3V
• Short Circuit Current (Isc): 7.62A
• Module Efficiency: 19.36%
• Max Systems Voltage (V): 1000V
• Pmax Temperature Coefficient (W/°C): - 0.41%
• Voc Temperature Coefficient (V/°C): - 0.31
• Isc Temperature Coefficient (A/°C): 0.05%
• Nominal Operating Cell Temp (NOCT): 48±2
• Operating Temp: -40 to 85C
• Cell Type: PERC Shingled MONO
• Cell Quantity: 156 CELL
• Weight: 10Kg
• Front Glass: 3.2mm High Transmission, Low Iron, Termpered Glass
• Surface Load: 5400Pa
• Junction Box: IP65 Rated
• Output Cables: MC4, 2.5mm2 900mm

Solar Controller

Morningstar ProStar is regarded as the world's leading mid-range solar controller for both professional and consumer applications. Morningstar's second generation ProStar PWM solar controllers set new standards for reliability with their new innovative self-diagnostic circuitry and system design. Adopting 100% solid state innovation and low voltage disconnect a standard, the ProStar is the ultimate set and forget do it right the first time solar controller!

Specifications

• Rated Solar Current: 30a
• Rated Load Current: 30a
• System Voltage: 12/24v
• Positive Ground: Yes
• Remote Temp Probe: Yes

Battery Voltage Set Points

• Regulation Voltage GEL: 14.0v
• Float Voltage GEL: 13.7v
• Equalisation Voltage GEL: n/a
• Load Disconnect GEL: 11.4v

• Load Reconnect GEL: 12.6v

• Regulation Voltage Sealed: 14.15v

• Float Voltage Sealed: 13.7v
• Equalisation Voltage Sealed: 14.35v
• Load Disconnect Sealed: 11.4v

• Load Reconnect Sealed: 12.6v

• Regulation Voltage Flooded: 14.4v

• Float Voltage Flooded: 13.7v
• Equalisation Voltage Flooded: 14.9/15.1
• Load Disconnect Flooded: 11.4
• Load Reconnect Flooded:12.6
