18,000 BTU 22 SEER2 ACiQ 2-Zone Ceiling Cassette Mini Split System w/ Extreme Heat - 9 9

ACiQ's multi zone mini split systems are designed to give you intelligent technology and superior comfort, all at a reasonable cost. With the ACiQ Extreme Heat multi zone series ACIQ-18Z-HH-M2B / 2-ACIQ-09CC-HH-MB system, you get higher SEER and better low ambient (hyper heat) performance than the competition.

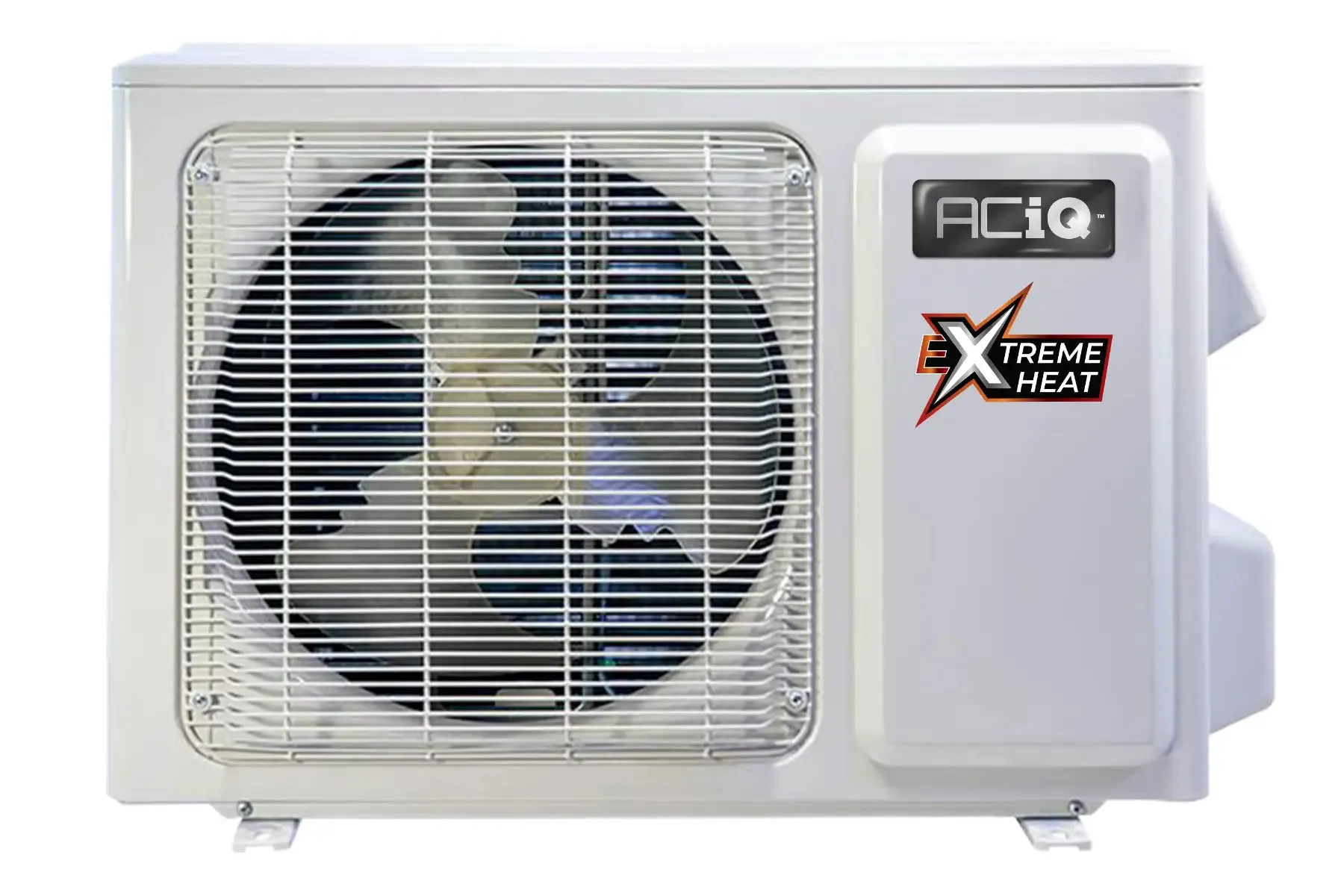

18,000 BTU ACiQ Multi Zone Condenser w/ Extreme Heat

ACiQ is the smart solution to adaptive heating and cooling in almost any space and climate -all at an affordable cost. With the ACIQ-18Z-HH-M2B, you can have up to 2 air handlers run off a single condenser, saving space outside and keeping you perfectly comfortable in your home.

The 18,000 BTU, ACiQ-18Z-HH-M2 is designed to easily support up to 2 air handlers at up to 1.25 times the condenser BTU rating, or 22,500 BTU across all air handlers. This adaptive, inverter condenser is constantly self-adjusting to provide the precise amount of heating or cooling needed to maintain your desired temperature in each room or zone. You can set different temperatures room by room, even turn off heating and cooling in unused areas. This, combined with a high efficiency rating of 21.5 SEER, means you are buying a system designed to intelligently save you money both up front and over the lifetime of the unit.

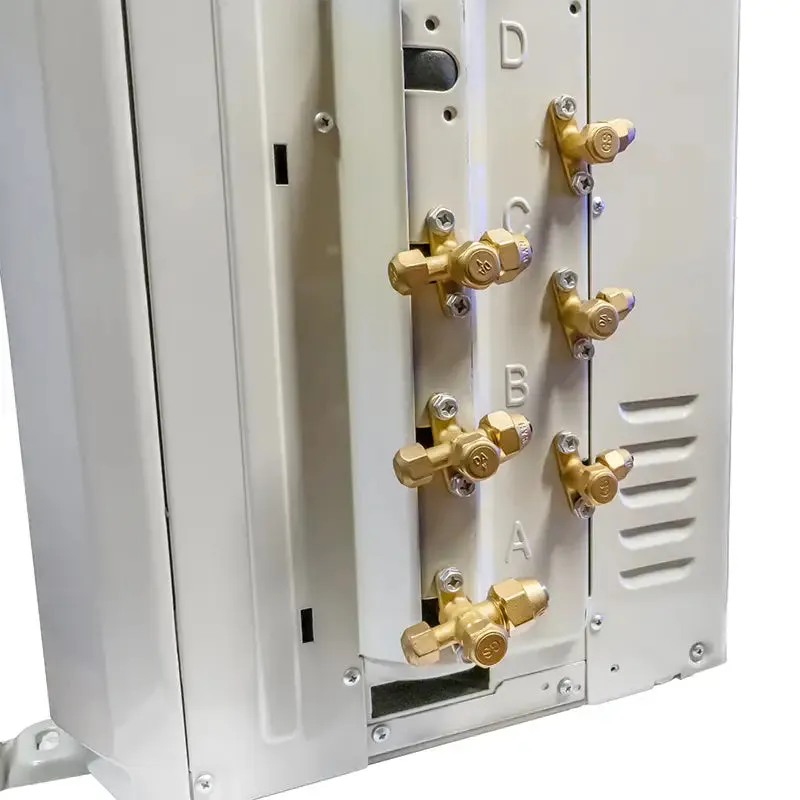

Although the condenser is pre-charged, please note that this model of equipment does not have quick connect line set connectors and is not a self-install unit. You will need a professional to add more refrigerant and vacuum the lines as needed. Installation materials such as line sets, control wire, drain hose, whip and disconnect are not included, but are available at additional cost in the Accessories section above on this page. For all multi zone ACiQ condensers, a minimum of two air handlers is needed for the unit to function.

Features:

• Extreme Heat Base Pan Heater Technology: Each ACiQ condenser has integrated Extreme Heat technology to maximize heat performance in extreme cold weather. Extended heat pump performance (HyperHeat) harnesses the power of inverter condenser with outdoor temp sensing, variable refrigerant flow and variable condenser fan speed to maximize heat extraction all the way down to -22°F. Plus, every Extreme Heat ACiQ condenser includes a base pan heater to keep ice from collecting on the condenser coil during heat pump operation.

• Quality Construction: State-of-the-Art manufacturing is behind every ACiQ product, resulting in quiet, effective operation over a long service life.

• Highest Efficiency: ACiQ saves you money up front, but also over time by reducing energy bills. Every ACiQ condenser features a variable inverter twin rotary compressor, lowering wear and increasing performance. Compare specs against other brands in the same price category, and you will agree, ACiQ is the best value.

• Longer life, longer warranty: Intelligent design goes into every element of ACiQ’s manufacturing ensuring flawless performance for years. Low friction, variable inverter twin rotary compressors give bulletproof reliability. This system is protected by a manufactures 7 years parts and 12 years compressor warranty.

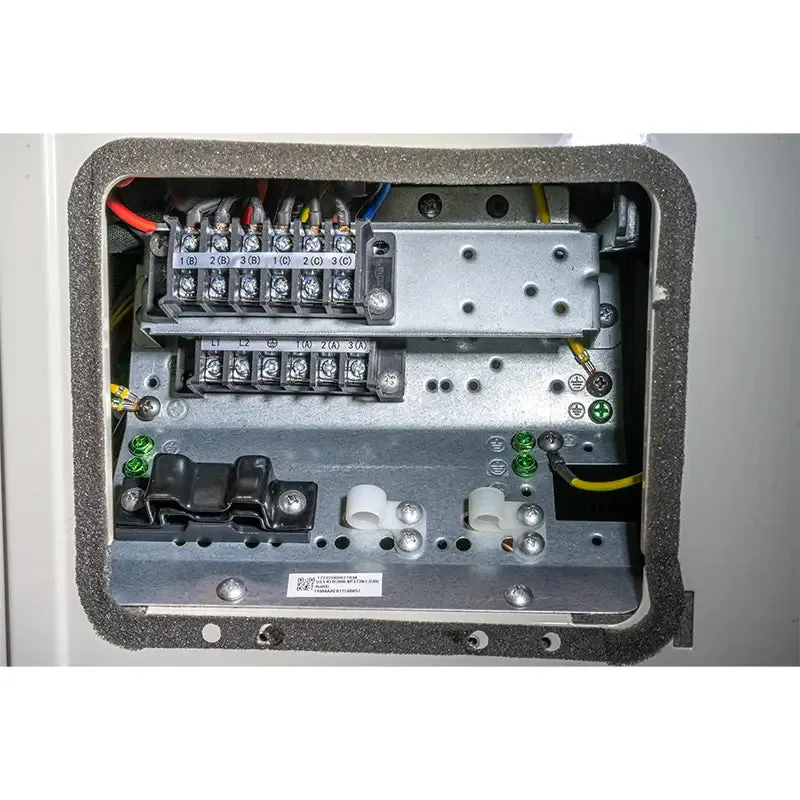

• Installation and Maintenance: ACiQ multi zone condensers are pre-charged with R410-A refrigerant for 25' per air handler connection. In many cases, no additional refrigerant is needed. All units are run-tested at the factory for years of trouble-free performance. Troubleshooting is easy thanks to unit's self diagnosing control board with alerts that are sent to each connected air handler.

Highlights:

• 18,000 BTU, 21.5 SEER multi zone heat pump condenser

• Designed to function with up to 2 attached air handlers

• Efficient cooling from 5°F to 122°F outdoor temperatures

• Efficient heating from -22°F to 75°F outdoor temperatures

• Integrated Extreme Heat technology with base pan heater

• Gold Fin full-protection coating on condenser coil

• Quiet operation at even the highest workloads

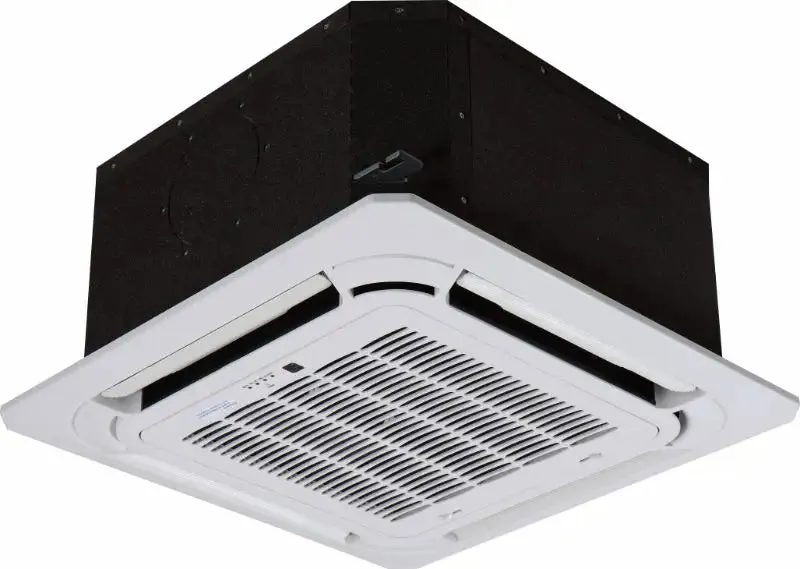

9,000 BTU Ceiling Cassette ACiQ Mini-Split Air Handler

Mini Split systems are great, but what if you don't want the air handler on your wall? ACiQ offers the ACIQ-09CC-HH-MB ceiling cassette air handler for customers who want a more hidden appearance and more centralized air distribution. Ceiling Cassette air handlers provide the same high-efficiency heating and cooling of a regular wall-mounted unit, and come with an included hand-held remote control. Once the ceiling cassette is mounted in the ceiling, only the grille is visible for the most understated appearance.

Features:

Ceiling Cassette: Flush-mounted Ceiling Cassettes offer the most understated appearance of any ductless air handler type. They can be centrally located in the room, and deliver conditioned air in all four directions, with return air being brought in through the center. Ceiling Cassettes include a factory installed condensation pump.

Quiet Comfort: Every ACiQ system is precision engineered to quickly achieve set temperature and hold it there, no matter what the weather is outside. With whisper quiet indoor and outdoor units, ACiQ never intrudes on your peace and quiet.

Highlights:

• 9,000 btu of Heating or Cooling

• Dry and Fan modes also available

• Good for a small room in most climates

• 4 Way Air Supply for consistent room coverage

• Handheld remote included

• Decorative Grille included

Installation Considerations

Ceiling Cassettes are flush-mounted, which requires removal of enough ceiling material to create a cavity for the unit. These units will fit between 24 on-center joists, but are too large to fit between 16 on-center joists without modifying the structure of your framing. Additionally, Ceiling Cassettes have factory-installed, onboard pumps to lift the condensation produced by the unit during cooling. The pump can lift the condensation up to 14. From there, it will be necessary to construct a PVC drain system to route the condensation to a safe wastewater location. Refrigerant and wiring connections are the same as the wall mounted units.

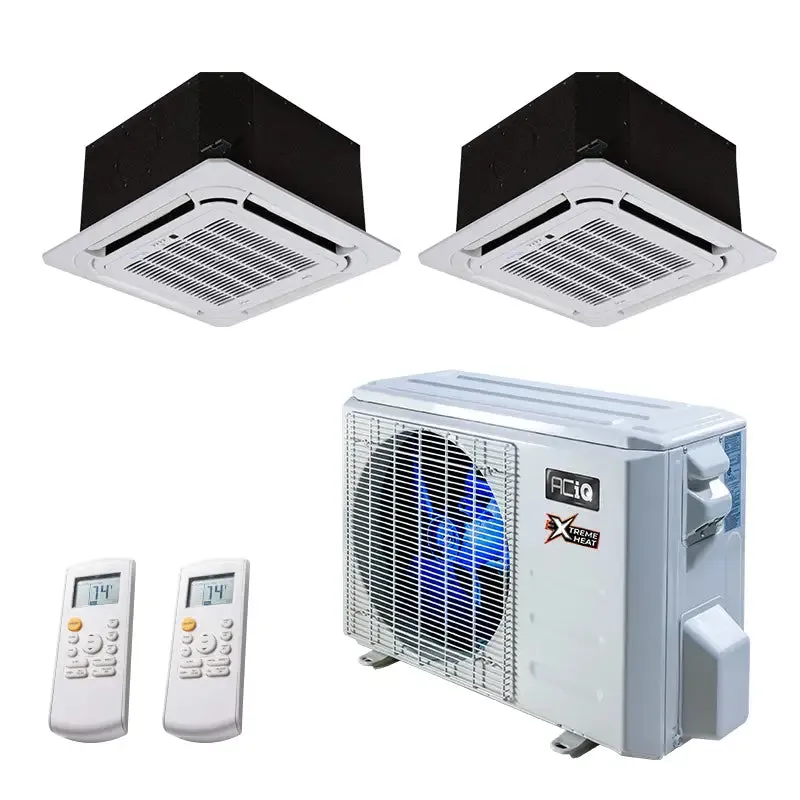

What's Included:

• 1x 18,000 BTU ACiQ Multi Zone Condenser w/ Extreme Heat

• 2x 9,000 BTU Ceiling Cassette ACiQ Mini-Split Air Handler

• 2x ACiQ Wireless Remote Controls

• 1x Free Condenser Wall Mounting Brackets ($119.99 Value)

• Refrigerant Line Sets with 1/4" and 3/8" Line Ends (Optional)

• 14/4 Mini-Split Control Wire (Included with line sets)

• Mini-Split Condensate Drain Line - 5/8" x 20' (Included with line sets)

Condenser Specifications:

9K BTU Air Handler Specifications:
